ACWGM090-090-140-110-1550-R18

ACWGM090-090-140-110-1550-R18

EMJ-02BPA22

EMJ-02BPA22

EMJ-02APA24

1pc Price:
$270.00
Quantity Discount
Inventory:
12
More Information
Rated Torque (oz-in) 91
Rated Power (Watts) 200
Rated Speed (RPM) 3000
Max Speed (rpm) 3000
Rated Current (Arms) 1.3
Voltage 220 VAC
Brake Yes
Inertia (oz-in-sec2) 0.00326
Torque Constant KT (oz-in/A) 79.9
Resistance (ohms) 11
Length (mm) 163
Weight (lbs) 4.41
Interested in large quantity discount?

Product Information

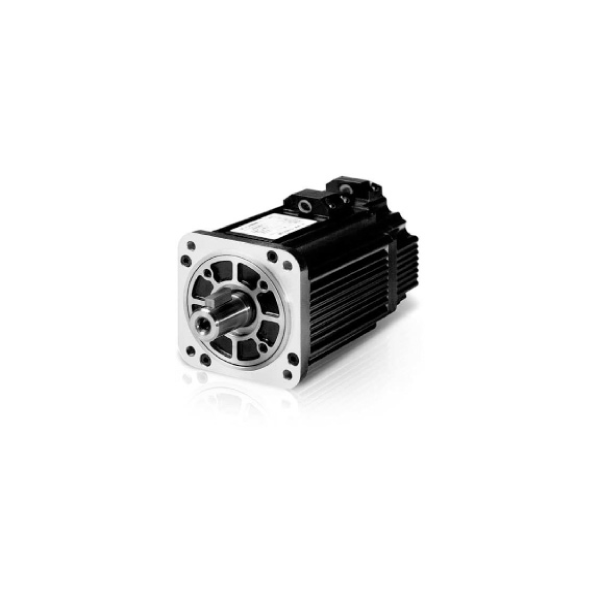

Anaheim Automation’s Digital AC Servo Motors offer a simple solution to servo applications involving speed and positioning control. The AC EMJ-02 Servo Motor comes standard with a 2,500 Pulses Per Revolution (PPR) Incremental Encoder, runs at a maximum speed of 4,500 RPM, provides peak values up to 300% of the rated torque and current values, and has a rated torque of 91 oz-in with a 200 Watt power rating. These enclosed and self-cooled motors also provide longer motor life and higher reliability. The EMJ-02 AC Servo Motors enable industrial motion control applications with medium inertia to attain a great combination of speed and positioning functionaliity.

The EMJ-02APA24 Servo Motor is LTSOH (Limited to Stock on Hand).

  • Rated Torque of 91 oz-in
  • Medium Inertia to Maximize Torque
  • Peak Torque up to 300% of Rated Torque
  • Peak Current up to 300% of Rated Current
  • No Load Speed of up to 4,500 RPM
  • 2,500 CPR Incremental Encoder Attached
  • Enclosed and Self-Cooled
  • Power Rating up to 200 Watts
  • Optional Brake Available
  • Long Life and Highly Reliable
  • Neodymium-Iron-Boron Magnets (NdFeB)
  • Class F Insulation
  • CE Certified

Spec Sheet (PDF)
