EMJ-02BPA22
| Rated Torque (oz-in) | 91 |
|---|---|
| Rated Power (Watts) | 200 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 4500 |
| Rated Current (Arms) | 2.7 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.00269 |
| Torque Constant KT (oz-in/A) | 40.9 |
| Resistance (ohms) | 2.7 |

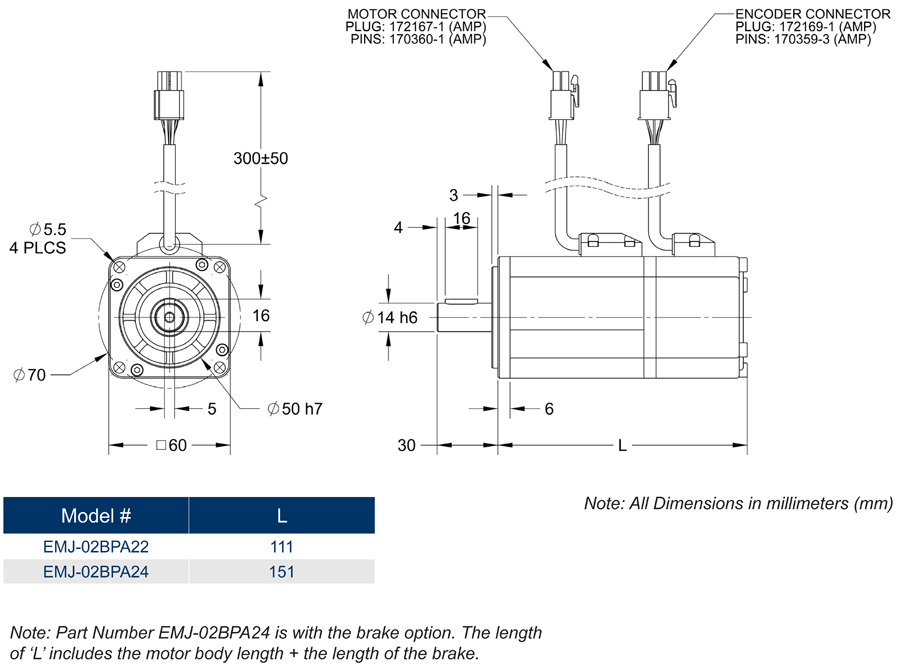

| Length (mm) | 111 |
| Weight (lbs) | 2.7 |
Interested in large quantity discount?
Product Information
EMJ-02BPA22 is LTSOH (Limited to Stock on Hand)

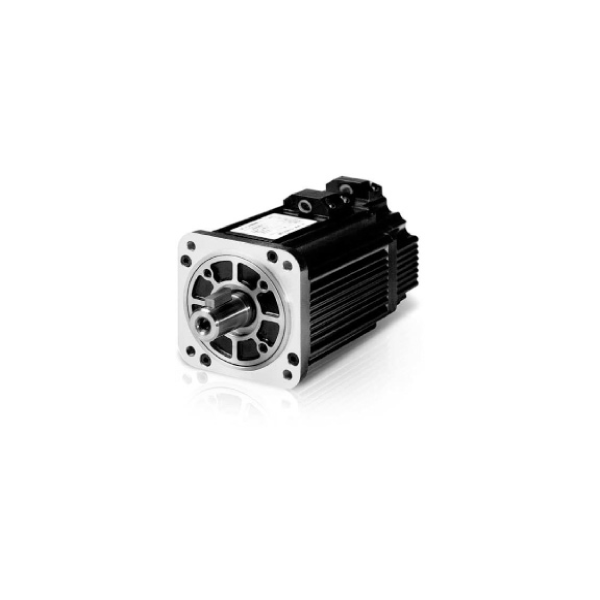

Anaheim Automation’s Digital AC Servo Motors offer a simple solution to servo applications involving speed and positioning control. The AC EMJ-02 Servo Motor comes standard with a 2,500 Pulses Per Revolution (PPR) Incremental Encoder, runs at a maximum speed of 4,500 RPM, provides peak values up to 300% of the rated torque and current values, and has a rated torque of 91 oz-in with a 200 Watt power rating. These enclosed and self-cooled motors also provide longer motor life and higher reliability. The EMJ-02 AC Servo Motors enable industrial motion control applications with medium inertia to attain a great combination of speed and positioning functionaliity.
- Rated Torque of 91 oz-in
- Medium Inertia to Maximize Torque
- Peak Torque up to 300% of Rated Torque
- Peak Current up to 300% of Rated Current
- No Load Speed of up to 4,500 RPM
- 2,500 CPR Incremental Encoder Attached
- Enclosed and Self-Cooled
- Power Rating up to 200 Watts
- Optional Brake Available
- Long Life and Highly Reliable
- Neodymium-Iron-Boron Magnets (NdFeB)
- Class F Insulation
- CE Certified
Spec Sheet (PDF)
