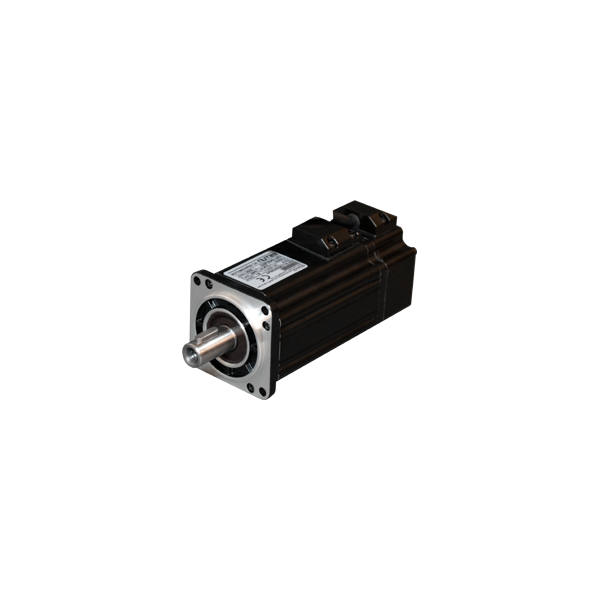

EMJ-04ASA22
| Rated Torque (oz-in) | 179 |
|---|---|
| Rated Power (Watts) | 400 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 4500 |
| Rated Current (Arms) | 2.8 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.00438 |
| Torque Constant KT (oz-in/A) | 79.8 |
| Resistance (ohms) | 4.7 |
| Inductance (mH) | 13.66 |

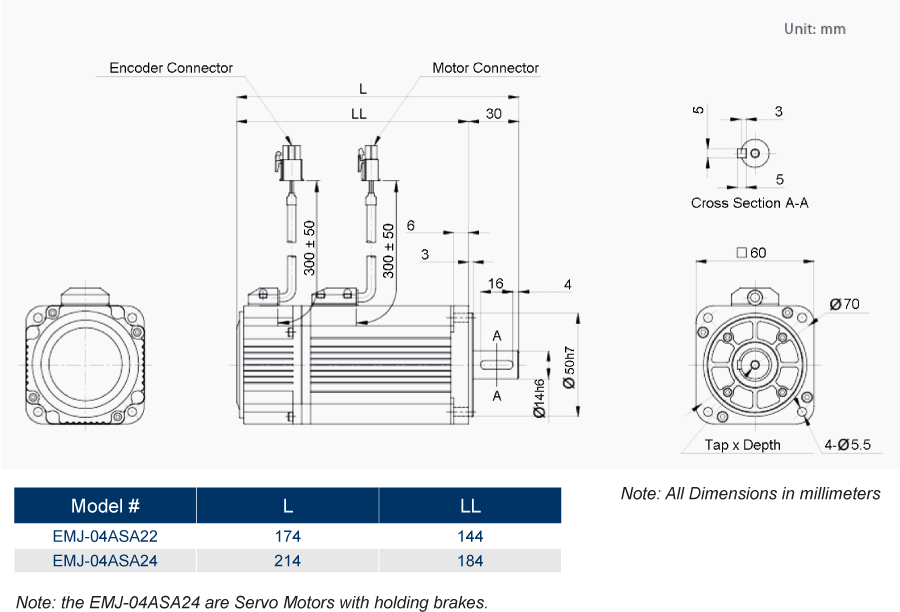

| Length (mm) | 144 |
| Weight (lbs) | 3.35 |
Interested in large quantity discount?
Product Information
EMJ-04ASA22 is LTSOH (Limited to Stock on Hand)
Anaheim Automation’s Digital AC Servo Motors offer a simple solution to servo applications involving speed and positioning control. The EMJ-04ASA Servo Motor comes standard with a 131,072 Pulses Per Revolution (PPR) Absolute Encoder, runs at a maximum speed of 4,500 RPM, provides peak values up to 300% of the rated torque and current values, and has a rated torque of 179 oz-in with a 400 Watt power rating. These enclosed and self-cooled motors also provide longer motor life and higher reliability. The EMJ-04ASA Servo Motors enable industrial motion control applications to attain a great combination of speed and positioning functionality.
- 220 VAC
- Rated Torque of 179 oz-in
- 400 Watt Power Rating
- Rated Speed 3000 RPM
- Maximum Speed 4500 RPM

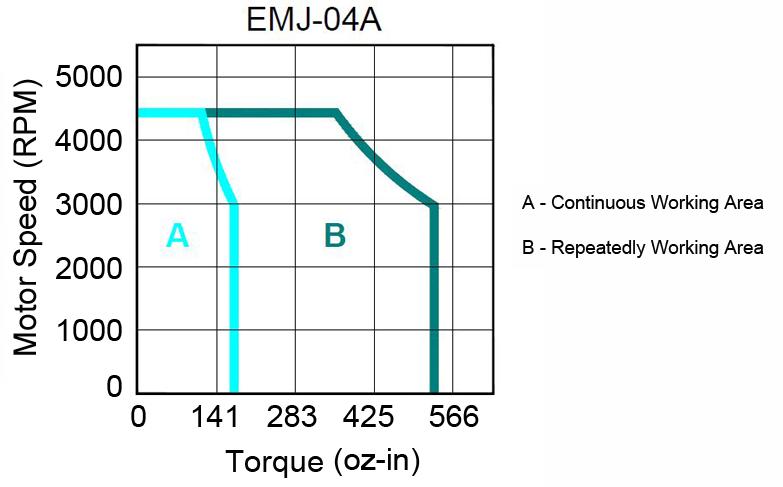

- Peak Torque up to 300% of Rated Torque
- Peak Current up to 300% of Rated Current
- 131,072 PPR Absolute Encoder Attached
- Enclosed and Self-Cooled
- CE Certified
Spec Sheet (PDF)
