ENC-A4TS-0200-250-M

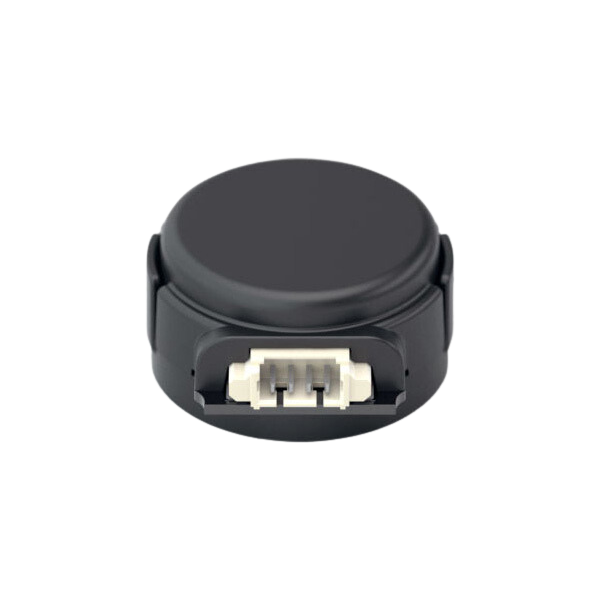

With an acceptable minimum shaft length of .275" and maximum shaft length of .395". Shaft sizes ranging from .079" to .250" in diameter, the ENC-A4TS is a single-ended miniature encoder designed for high volume applications with space limitations. The ENC-A4TS module is designed to detect the rotary position with a code wheel. When attached to the end of a shaft, the encoder provides digital feedback information for motion control applications that require position, speed and/or direction control. This single-ended miniature encoder consists of a LED source lens and a monolithic detector IC enclosed in a small polymer package. These modules implement phased array detector technology providing superior performance and tolerances over traditional aperture mask type encoders. The ENC-A4TS series provides digital quadrature outputs on all resolutions and are capable of sinking or sourcing 8 mA each. These encoders are powered from a single +5VDC power supply and are RoHS compliant.

*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page. ENC-CBL-CA-MIC4 Cables and Centering Tools are also available. For instructions on installing your encoder to a motor, view our step by step video tutorial here.

• Miniature Size
• 100 to 1000 Cycles Per Revolution (CPR)
• Tracks 0 to 100,000 Cycles Per Second
• Off-Axis Mounting Tolerance of .010"
• 2-Channel Quadrature TTL Squarewave Outputs
• Operating Temperature of -20° to +100° C
• Powered From a Single +5VDC Power Supply
