ENC-A4TS-0500-157-M

Unit Price:
$32.00
Quantity Discount
  • Buy 10 for $26.82 each and save 16%
  • Buy 25 for $26.41 each and save 17%
  • Buy 50 for $26.00 each and save 19%
  • Buy 100 for $24.68 each and save 23%
Inventory:
0
Out of Stock
More Information
Cycles Per Rev (CPR) 500
Bore Size .157"
Index Channel No
Cover Cover
Interested in large quantity discount?

Product Information

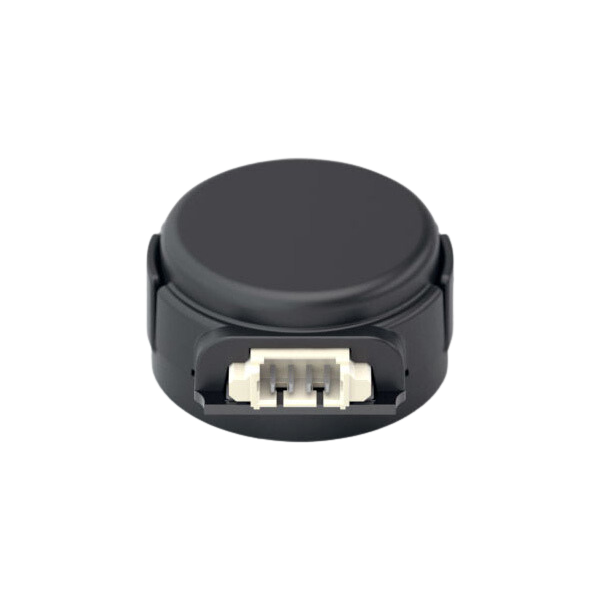

With an acceptable minimum shaft length of .275" and maximum shaft length of .395". Shaft sizes ranging from .079" to .250" in diameter, the ENC-A4TS is a single-ended miniature encoder designed for high volume applications with space limitations. The ENC-A4TS module is designed to detect the rotary position with a code wheel. When attached to the end of a shaft, the encoder provides digital feedback information for motion control applications that require position, speed and/or direction control. This single-ended miniature encoder consists of a LED source lens and a monolithic detector IC enclosed in a small polymer package. These modules implement phased array detector technology providing superior performance and tolerances over traditional aperture mask type encoders. The ENC-A4TS series provides digital quadrature outputs on all resolutions and are capable of sinking or sourcing 8 mA each. These encoders are powered from a single +5VDC power supply and are RoHS compliant.

*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page. ENC-CBL-CA-MIC4 Cables and Centering Tools are also available. For instructions on installing your encoder to a motor, view our step by step video tutorial here.

  • Miniature Size
  • 100 to 1000 Cycles Per Revolution (CPR)
  • Tracks 0 to 100,000 Cycles Per Second
  • Off-Axis Mounting Tolerance of .010"
  • 2-Channel Quadrature TTL Squarewave Outputs
  • Operating Temperature of -20° to +100° C
  • Powered From a Single +5VDC Power Supply

3D PDF

.STEP File (.RAR File)

Assembly Instructions

Spec Sheet (PDF)

RoHS Compliant
