ENC-A3N-2048-787-H-M

ENC-A3N-2048-787-H-M

ENC-A5DN-0050-197

ENC-A5DN-0050-197

ENC-A5DI-4000-197-H-3

1pc Price:
$92.00
Quantity Discount
  • Buy 10 for $62.64 each and save 32%
  • Buy 25 for $60.97 each and save 34%
  • Buy 50 for $59.39 each and save 35%
  • Buy 100 for $52.85 each and save 43%
Inventory:
1
More Information
Cycles Per Rev (CPR) 4000
Bore Size 197
Index Channel Yes
Cover H
Base 3
Interested in large quantity discount?

Product Information

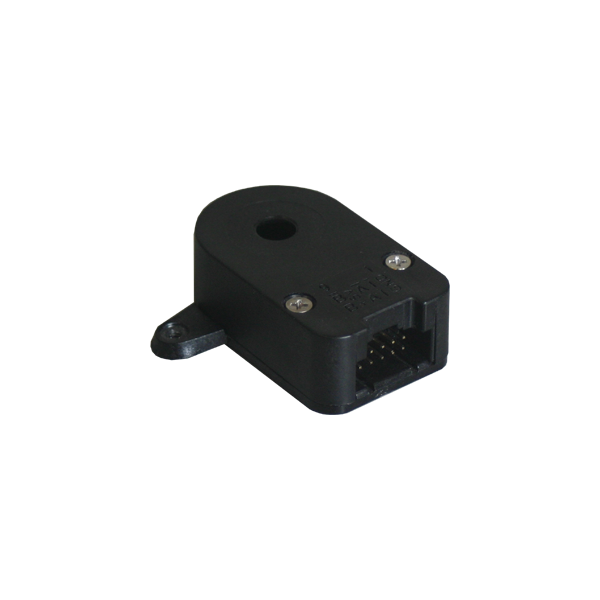

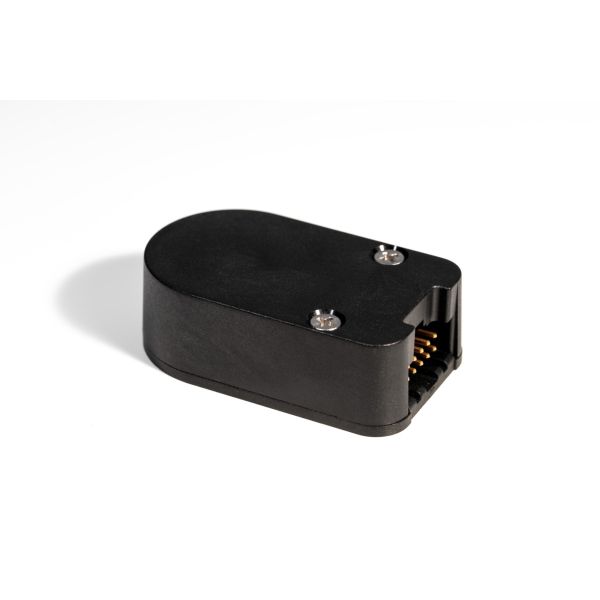

The ENC-A5DI is a differential encoder designed for quick and simple assembly to any shaft with a minimum length of .445" and maximum shaft length of .570", and accepts shaft sizes ranging from .079" to .394" in diameter. The ENC-A5DI module is designed to detect the rotary position with a code wheel. The ENC-A5DI can be attached to the end of any shaft to provide digital feedback information. This differential encoder consists of a LED source lens and a monolithic detector IC enclosed in a small polymer package. These modules implement phased array detector technology providing superior performance and tolerances over traditional aperture mask type encoders. The ENC-A5DI series provides digital quadrature differential outputs on all resolutions and are capable of sinking or sourcing 8 mA each. These encoders are powered from a single +5VDC power supply and are RoHS compliant and REACH certified.

*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page. Cables and Centering Tools are also available. For instructions on installing your encoder to a motor, view our step by step video tutorial here.

  • 50 to 5,000 Cycles Per Revolution (CPR)
  • Tracks 0 to 300,000 Cycles Per Second
  • 2-Channel Quadrature Differential Squarewave Outputs
  • Third Index Channel
  • Operating Temperature -40° to +100° C
  • Powered From a Single +5VDC Power Supply
  • Latching Connector
  • Allows for ± .010" Axial Shaft Play
  • RoHS Compliant and REACH Certified

3D PDF

.STEP File (.RAR File)

Assembly Instructions

Spec Sheet (PDF)

RoHS Compliant
