ENC-A5DN-0050-197

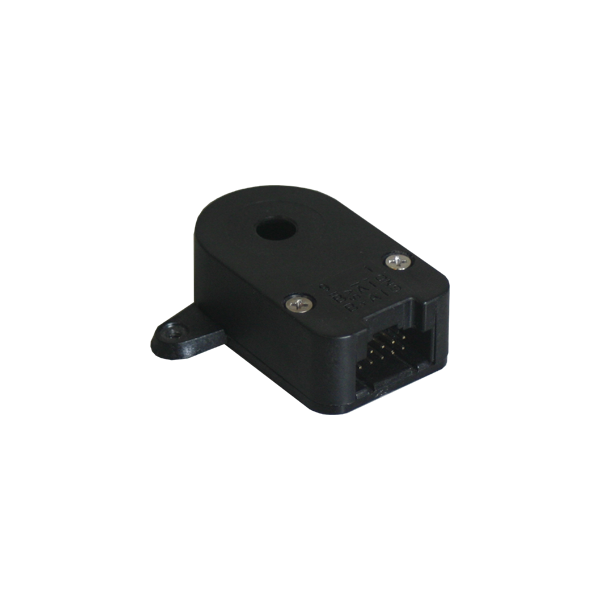

The ENC-A5DN is a differential encoder designed for quick and simple assembly to any shaft with a minimum length of .445" and maximum length of .570", and accepts shaft sizes ranging from .079" to .394" in diameter. The ENC-A5DN module is designed to detect the rotary position with a code wheel. The ENC-A5DN can be attached to the end of any shaft provide digital feedback information. This differential encoder consists of a LED source lens and a monolithic detector IC enclosed in a small polymer package. These modules implement phased array detector technology providing superior performance and tolerances over traditional aperture mask type encoders. The ENC-A5DN series provides digital quadrature differential outputs on all resolutions and are capable of sinking or sourcing 8 mA each. These encoders are powered from a single +5VDC power supply and are RoHS compliant and REACH certified.

*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page. Cables and Centering Tools are also available. For instructions on installing your encoder to a motor, view our step by step video tutorial here.

• 32 to 1,250 Cycles Per Revolution (CPR)
• Tracks 0 to 300,000 Cycles Per Second
• 2-Channel Quadrature Differential Squarewave Outputs
• Operating Temperature -40° to +100° C
• Powered From a Single +5VDC Power Supply
• Latching Connector
• Allows for ± .010" Axial Shaft Play
• RoHS Compliant and REACH Certified
