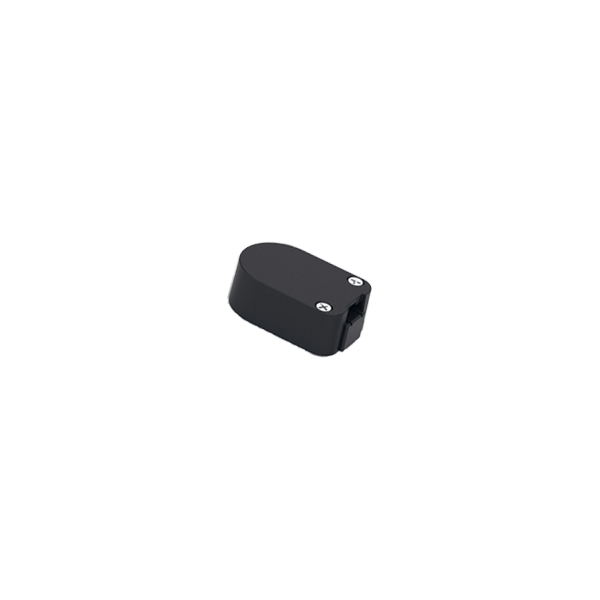

ENC-A5SNH-0500-394-H-G
| Cycles Per Rev (CPR) | 500 |
|---|---|
| Bore Size | 394 |
| Index Channel | No |
| Cover | H |
| Base | G |
Interested in large quantity discount?
Product Information
The ENC-A5SNH is a high voltage single-ended, transmissive optical encoder module designed to detect the rotary position with a code wheel. The cable driver is built into the encoder and includes a 10-PIN single-ended open collector output. This new output configuration enables Incremental Encoders to accept power up to 30VDC without external adapters. The ENC-A5SNH requires a minimum shaft length of .445” and maximum shaft length of .570”, and can be attached to the end of any shaft size ranging from .079” to .394” in diameter to provide digital feedback information. This single-ended encoder consists of a LED source lens and a monolithic detector IC enclosed in a small mance and tolerances over traditional aperture mask type encoders. The ENC-A5SNH series provides digital quadrature squarewave outputs on all resolutions and are capable of sinking or sourcing 8 mA each. These encoders are powered from a single 7.5~30VDC power supply.
- Powered From a Single 7.5~30VDC Power Supply
- 2-Channel Quadrature Open Collector and TTL Squarewave Outputs
- 32 to 1,250 Cycles Per Revolution (CPR)
- Tracks 0 to 300,000 Cycles Per Second
- Accepts +/- 0.010” Axial Shaft Play
- Operating Temperature, CPR < 2000 is -40° to +100° C
- Operating Temperature, CPR ≥ 2000 is -25° to +100° C
