ENC-A6SNH-1000-236-M
| Cycles Per Rev (CPR) | 1000 |
|---|---|
| Bore Size | 236 |
| Index Channel | No |
| Base | M |
Interested in large quantity discount?
Product Information

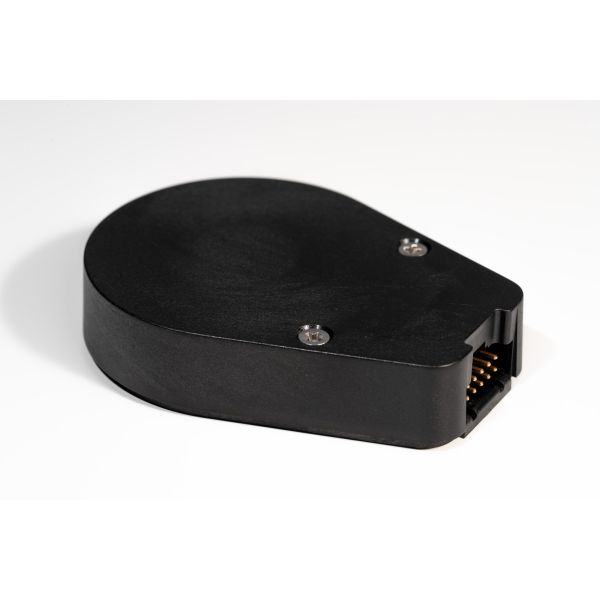

The ENC-A6SNH is a Single-Ended Optical Kit Encoder designed for quick and simple assembly that fits any shaft diameters from 0.079” to 1”. It fits to any shaft length over 0.445” diameter when equipped with the Hole in Cover option. However, the default required shaft length is from 0.445” to 0.570” and the Cover Extension required shaft length is 0.445” to 0.750”. The cable driver is built into the encoder and includes a 10-PIN single-ended open collector output. This new output configuration enables Incremental Encoders to accept power up to 30VDC without external adapters. The ENC-A6SNH module is designed to detect the rotary position with a code wheel. The ENC-A6SNH can be attached to any existing shaft to provide digital feedback information. This Single-Ended Encoder consists of a highly accurate aligned solid state light source and monolithic phased array sensor, when combined together they provide a system extremely tolerant to mechanical misalignments. The ENC-A6SNH Single-Ended Optical Kit Encoder has a molded, rugged 20% glass filled polycarbonate that utilizes a 5-Pin latching connector.
- Powered From a Single 7.5~30VDC Power Supply
- 2-Channel Quadrature Open Collector and TTL Squarewave Outputs
- 64 to 10,000 Cycles Per Revolution (CPR)
- Positive Latching Connector
- Allows for ±0.010” Axial Shaft Play
- Operating Temperature, CPR < 2000 is -40° to +100° C
- Operating Temperature, CPR ≥ 2000 is -25° to +100° C
- RoHS Compliant and REACH Certified
