ENC-S4TD-1000-250-B

ENC-S4TD-1000-250-B

ENC-AMT103-V

ENC-AMT103-V

ENC-AMT102-V

Unit Price:
$38.00
Quantity Discount
  • Buy 10 for $32.74 each and save 14%
  • Buy 25 for $32.29 each and save 15%
  • Buy 50 for $29.64 each and save 22%
  • Buy 100 for $28.14 each and save 26%
Inventory:
42
In stock
More Information
Cycles Per Rev (CPR) 48-2048
Bore Size .079"-.315"
Index Channel Yes
Base Standard / Wide
Interested in large quantity discount?

Product Information

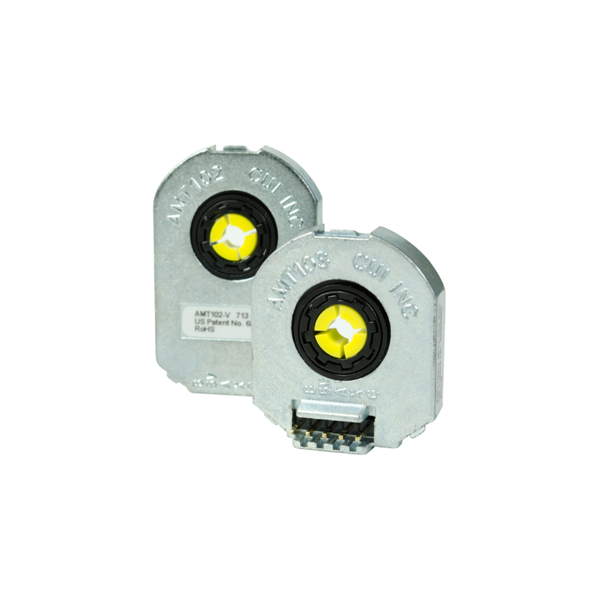

The AMT10 Modular Incremental Encoder is based on a new type of Capacitive technology. With CUI's new patented Capacitive ASIC technology this encoder is superior in every way compared to other encoders (Magnetic, Optical). The AMT10 is a rugged, high accuracy incremental encoder that offers 16 programmable resolutions from 48 to 2048 CPR, all in just one AMT10 encoder. If that's not enough, there are 9 shaft diameter options. Each AMT10 comes with 9 color coded bore sleeves, ranging from .079" to .315" that will adapt to 9 different motor shaft diameters. Also, included are two mounting tools, and with one standard and one wide baseplate that has multiple pre-drilled mounting hole patterns designed to mate with a wide range of motors. Furthermore, because of the Capacitive platform it is not susceptible to contaminants such as dirt, dust, and oil that usually plague encoders in industrial environments. With its compact package and low current draw, it's unlike any other encoders. The AMT10 is the perfect solution for your business, whether it's for industrial, automation, robotics, or renewable energy applications.

Note: The AMT103-V does not come with a wide baseplate, only a standard baseplate goes with the AMT103-V

  • 16 DIP Switch Selectable Resolutions (48 to 2048 CPR)
  • Low Power Consumption
  • Patented Capacitive ASIC Technology
  • CMOS Voltage Outputs
  • Kit with 9 Bore Sleeve Options (.079" to .315")
  • 9 Mounting Hole Options for Radial Version (AMT102-V)
  • 8 Mounting Hole Options for Axial Version (AMT103-V)
  • Index Pulse
  • -40 to 100°C Operating Temperature
  • Single-Ended

.STEP File (.RAR File)

Assembly Instructions

Spec Sheet (PDF)
