ENC-MC58DI-L-10000-1-10-A-L1
| Mounting | Anti-Rotation Pin |
|---|---|
| Output Signal | A, /A, B, /B, I, /I |
| Output Circuit | Line Driver |
| Cycles Per Rev (CPR) | 10000 |
| Power Supply Voltage (VDC) | 5V ±5% |
| Bore Diameter (mm) | 10 |
| Cable Length (m) | 1 |
Interested in large quantity discount?
Product Information

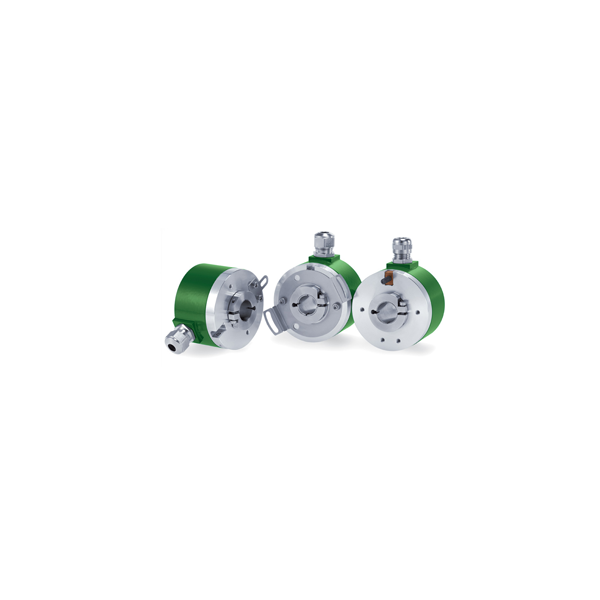

The ENC-MC58/MC59/MC60 is a hollow shaft encoder used for heavy Industrial and feedback applications. These magnetic encoders are offered with resolutions ranging from 20 to 10,000 CPR (model dependent). These encoders fit shaft diameters up to 15mm, but reducing sleeves are available for shaft diameters as small as 6mm. With various mounting options, three output circuitry options, and input voltage ranges, these encoders can be customized to fit your applications needs.
- Standard Encoder for Heavy Industrial Application
- Single-Ended or Differential Output
- 20 to 10,000 Cycles Per Revolution (CPR)
- Hollow Shaft up to Ø15mm
- Optional Index Channel
- IP65 Standard
- Output Circuitry
- Push-Pull
- Line Driver
- PP/LD Universal Circuit
- Custom Options Available
- Custom Cable Lengths
- IP67 Protection
- Connection Options
.png)
.png)
.png)
