GBPN-0642-FS-040

GBPN-0642-FS-040

GBPN-0901-FS-003

GBPN-0901-FS-003

GBPN-0642-FS-064

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 64
Rated Output Torque (in-lbs) 159
Max Output Torque (in-lbs) 257
Backlash Maximum (arc-min) 12
Maximum Input Speed (RPM) 13000
Stages 2
Efficiency (%) 96
L2 Length (mm) 58
Weight (lbs) 3.10
Interested in large quantity discount?

Product Information

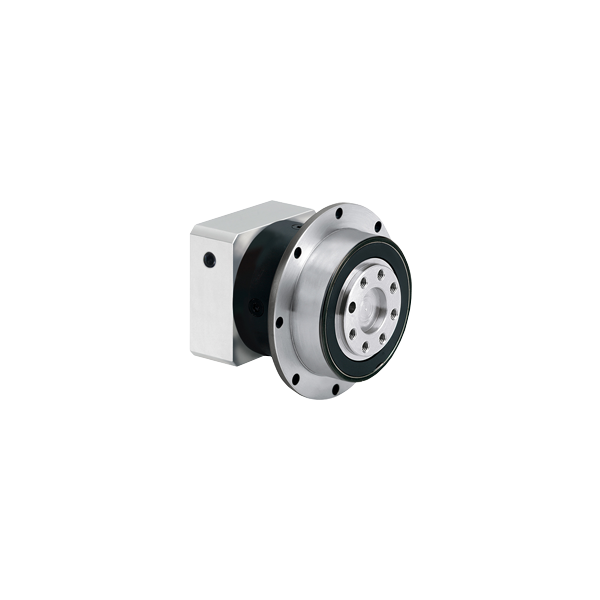

The GBPN-064x-FS Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with the highest torque density possible for motion control, automation, and robotic applications requiring a compact solution. This planetary gearbox series is an ideal match for the NEMA 23 frame size as well as your servo, stepper, brushless, AC or DC motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Backlash as Low as 16 arc-min
  • Gear Ratios from 3 to 64
  • Long Design Life, Over 30,000 hrs
  • Lifetime Lubrication
  • High Durability
  • 96 Percent Efficiency



For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA231-250 23Y BLWS23 -
BLK24-551 - BLK24 -
SMH60-551 - - SMC60, SMH60, SMS60

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form

Installation Guide
