GBPN-0902-FS-020

GBPN-0902-FS-020

GBPN-0902-FS-032

GBPN-0902-FS-032

GBPN-0902-FS-025

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 25
Rated Output Torque (in-lbs) 973
Max Output Torque (in-lbs) 1946
Backlash Maximum (arc-min) 9
Maximum Input Speed (RPM) 7000
Stages 2
Efficiency (%) 96
L2 Length (mm) 83
Weight (lbs) 7.30
Interested in large quantity discount?

Product Information

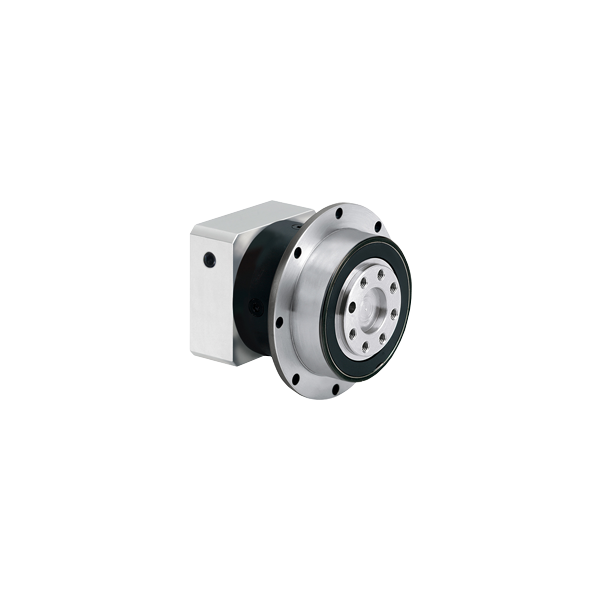

The GBPN-090x-FS Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with the highest torque density possible for motion control, automation, and robotic applications requiring a compact solution. This planetary gearbox series is an ideal match for the NEMA 34 frame size as well as your servo, stepper, brushless, AC or DC motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Backlash as Low as 9 arc-min
  • Gear Ratios from 3 to 64
  • Long Design Life, Over 30,000 hrs
  • Lifetime Lubrication
  • High Durability
  • 96 Percent Efficiency

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

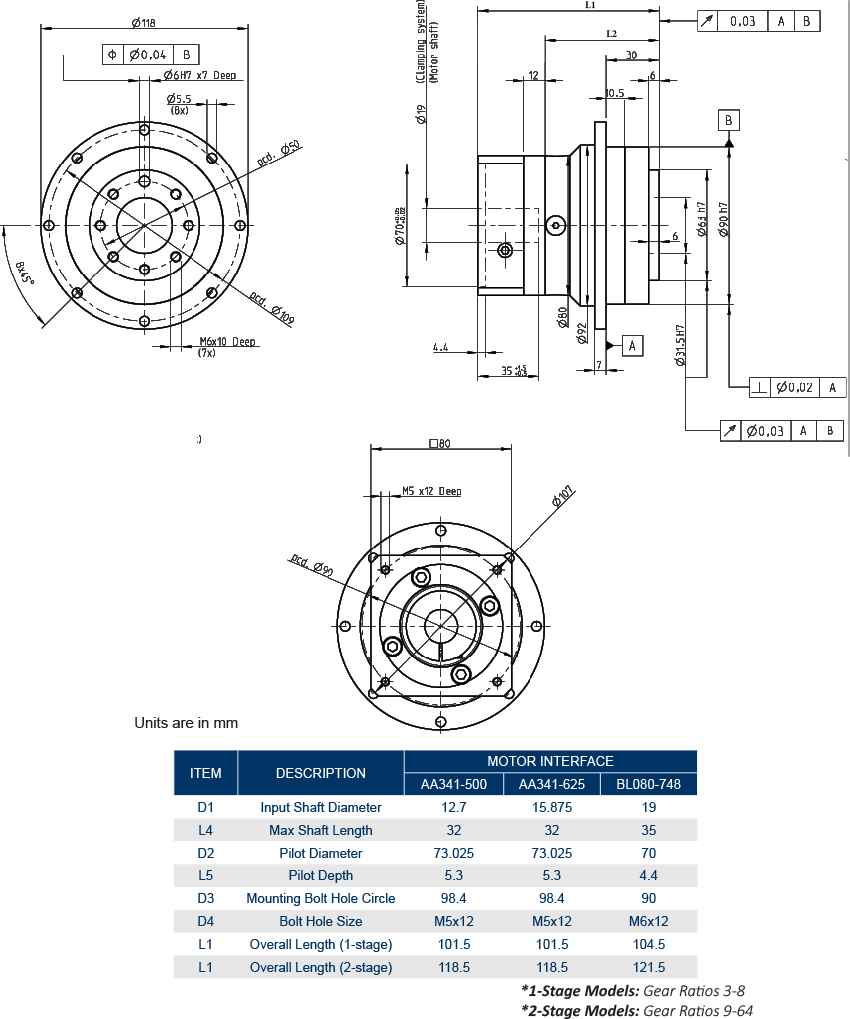

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA341-500

34Y1, 34K1, 34N1,

34Y2, 34K2, 34N2

BLY34 -
AA341-625 34Y3, 34K3, 34N3 - -
BLK32-748 - BLK32 -
SMH80-748 - -

SMC80S-0075, SMC80S-0100,

SMH80S-0075, SMH80S-0100

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form

Installation Guide
