GBPN-1601-008
| Gear Ratio (X:1) | 8 |
|---|---|
| Rated Output Torque (in-lbs) | 3983 |
| Max Output Torque (in-lbs) | 6373 |
| Backlash Maximum (arc-min) | 6 |
| Maximum Input Speed (RPM) | 6500 |
| Stages | 1 |
| Efficiency (%) | 96 |
| Torsional Rigidity (Nm/arcmin) | 39 |
| L2 Length (mm) | 104 |
| Weight (lbs) | 39.69 |
Interested in large quantity discount?
Product Information

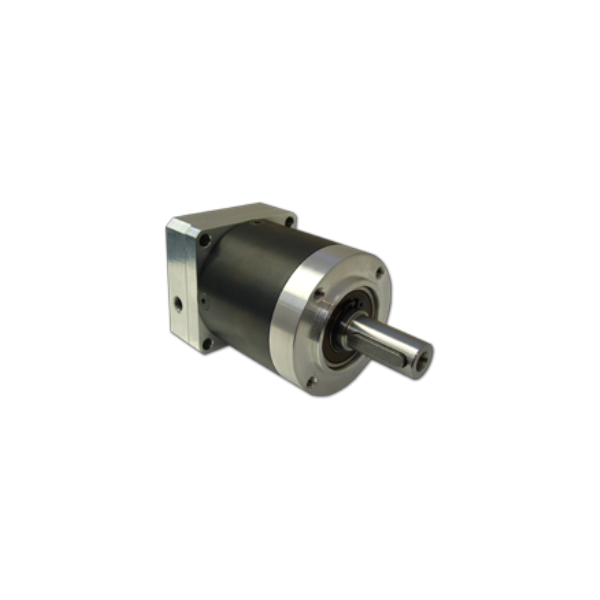

The GBPN-160x Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with the highest torque density possible for motion control, automation, and robotic applications requiring a compact solution. This planetary gearbox series is an ideal match for the NEMA 42 frame size andy many other servo, stepper, brushless, AC or DC motors. Built with the design goal of offering a cost-effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Compatable with NEMA Size 42 Motors
- Backlash as Low as 6 arc-min
- Gear Ratios from 3:1 to 64:1
- Long Design Life, Over 30,000 Hours
- Up to 96 Percent Efficiency
- Peak Input Speeds of Up to 6500 rpm
- Lifetime Lubrication, High Durability

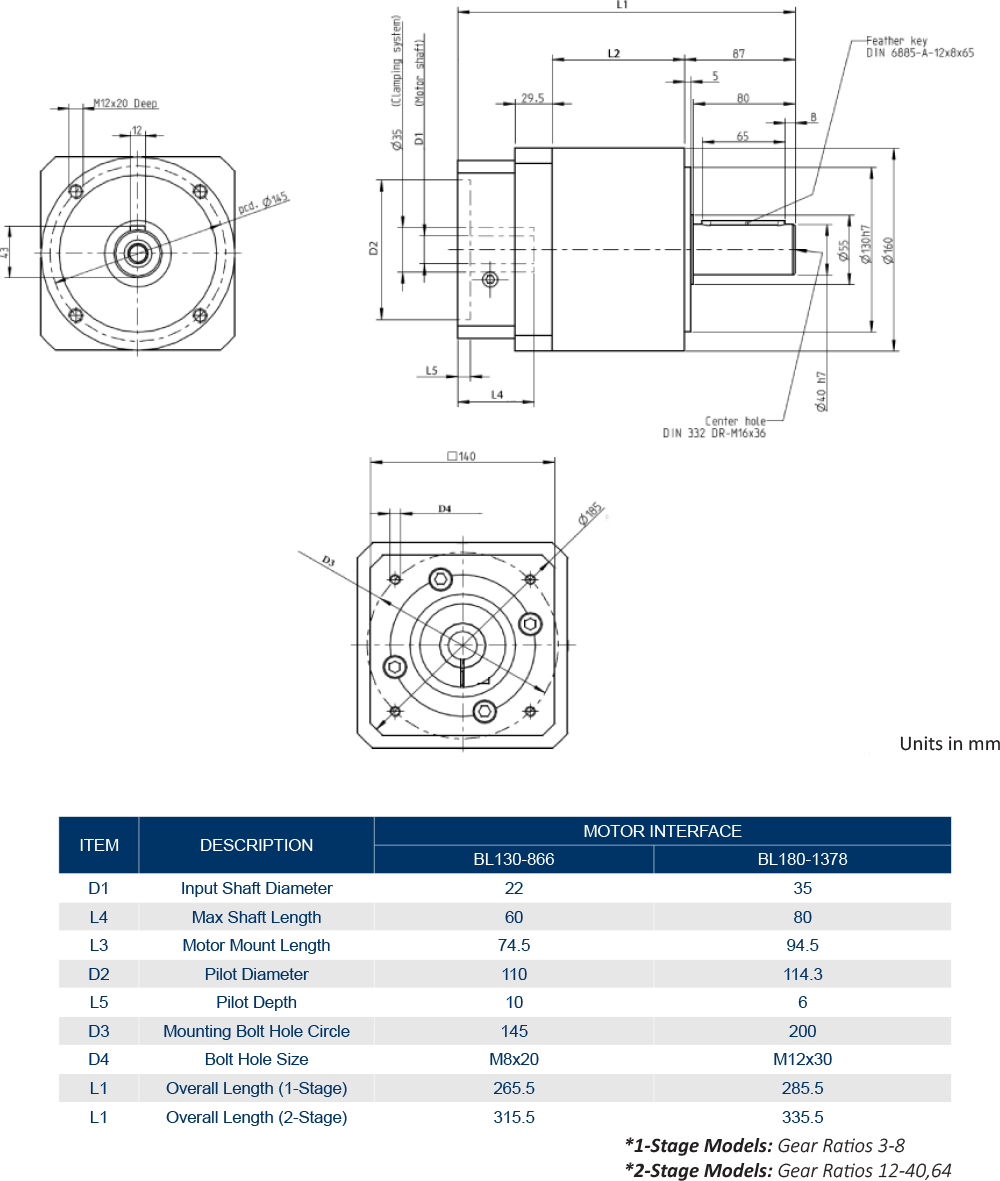

_Dimensions.png)
_Dimensions_Table.png)
