GBPNR-0603-CS-256

GBPNR-0603-CS-256

GBPNR-0603-CS-512

GBPNR-0603-CS-512

GBPNR-0603-CS-320

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 320
Rated Output Torque (in-lbs) 354
Max Output Torque (in-lbs) 566
Backlash Maximum (arc-min) 21
Maximum Input Speed (RPM) 13000
Stages 3
Efficiency (%) 88
Torsional Rigidity (Nm/arcmin) 2.5

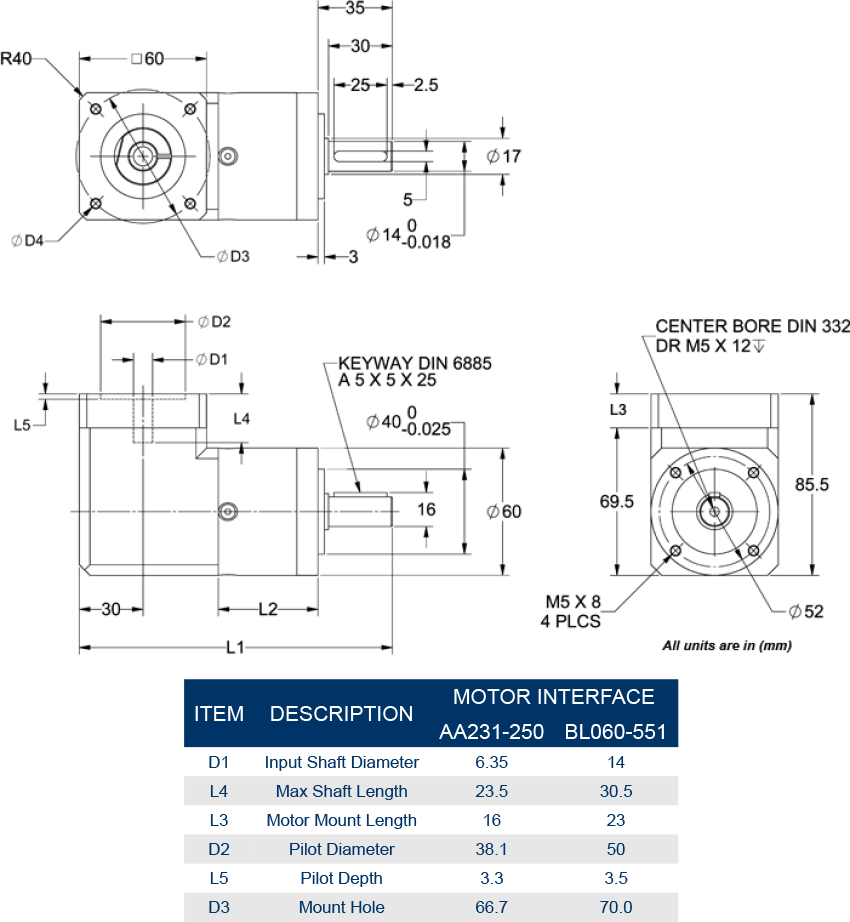

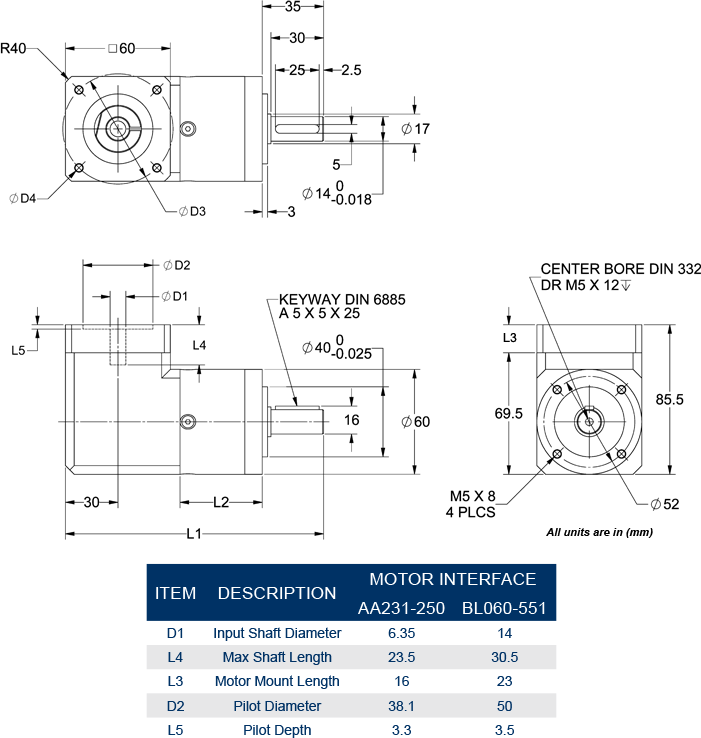

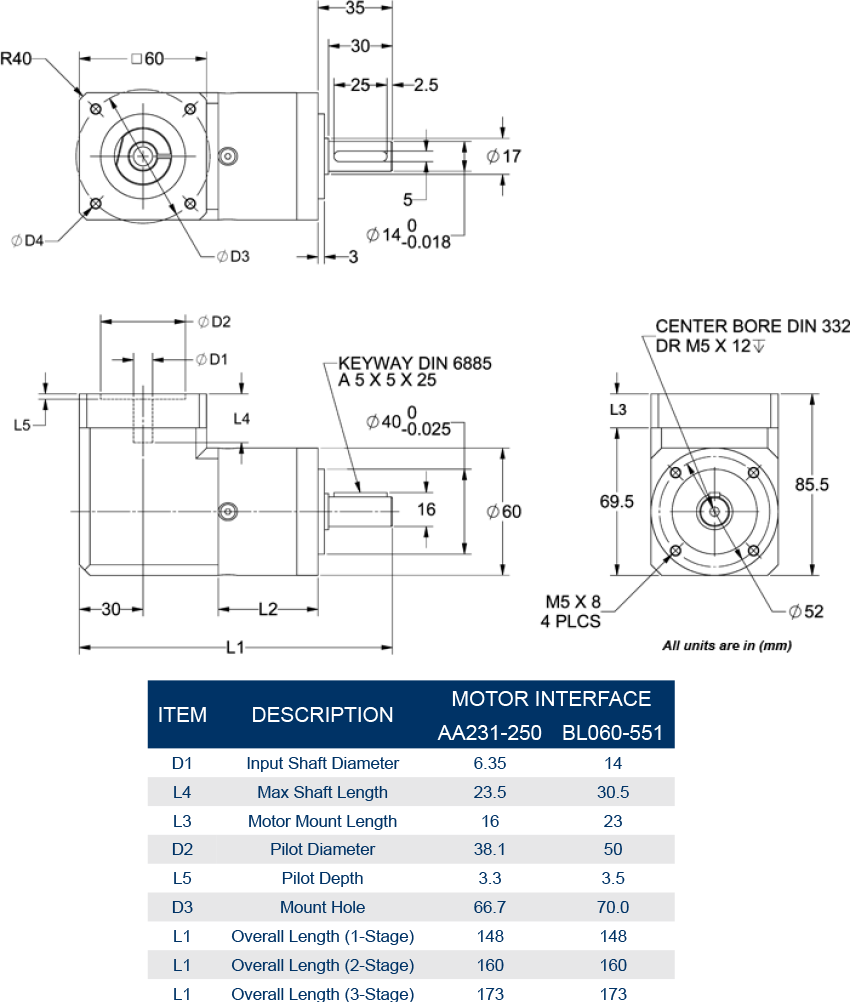

L1 Length (mm) 173
L2 Length (mm) 72
Weight (lbs) 4.60
Interested in large quantity discount?

Product Information

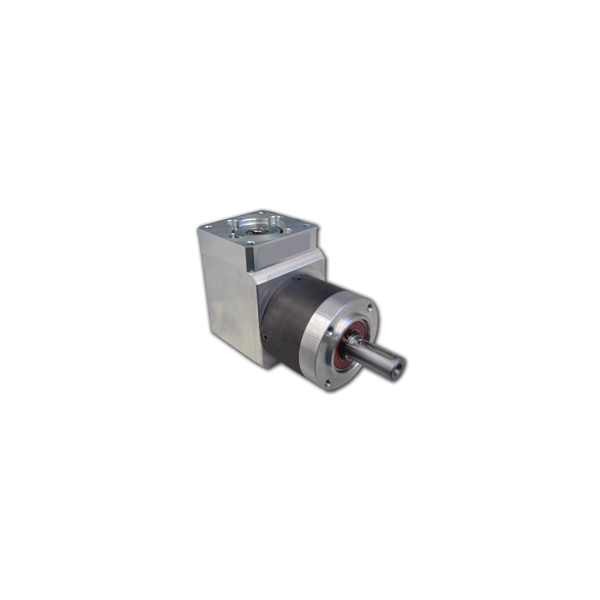

The GBPNR-060x-CS Series right angle planetary gearbox offers you the precision you need at the prices you want! This right angle planetary gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This right angle planetary gearbox will match your servo or stepping motor. It comes in 22 different gear ratios. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this right angle planetary gearbox offers you an extraordinary value. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Gear Ratios from 3 to 512
  • Backlash Lower than 28 arc-min
  • Available in 1, 2 and 3 Stage Models
  • Lifetime Lubrication
  • High Durability



For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA231-250 23Y BLWS23 -
BLK24-551 - BLK24 -
SMH60-551 - - SMC60, SMH60, SMS60
