GBPN-0403-512

GBPN-0403-512

GBPS-0401-CS-004

GBPS-0401-CS-004

GBPS-0401-CS-003

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 3
Rated Output Torque (in-lbs) 80
Max Output Torque (in-lbs) 120
Backlash Maximum (arc-min) 6
Maximum Input Speed (RPM) 6000
Stages 1
Efficiency (%) 95
Torsional Rigidity (Nm/arcmin) 1.2
Weight (lbs) 0.93
Interested in large quantity discount?

Product Information

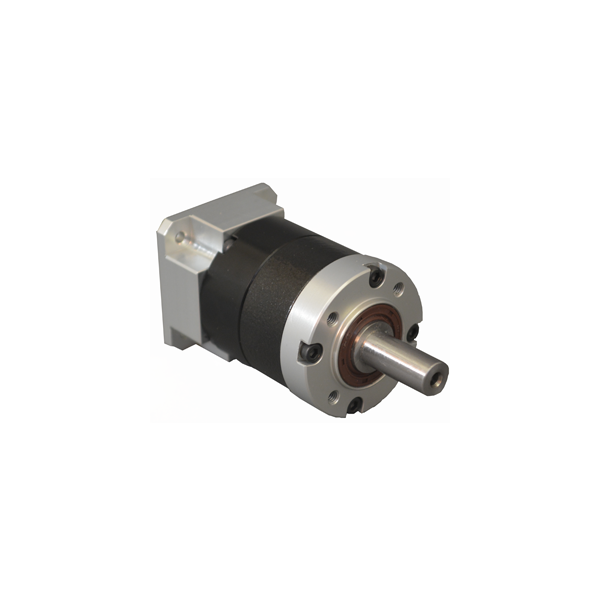

The GBPS-040x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-040x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 9 arcminutes, 20 gear ratios for rated torque up to 97 in-lbs (1557 oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Compatible with NEMA Size 17
  • Backlash as Low as 9 arc-min
  • Gear Ratios from 3:1 to 567:1
  • Long Design Life, Over 20,000 hrs
  • Up to 95 Percent Efficiency
  • Max Input Speeds up to 6,000 RPM
  • Lifetime Lubrication
  • Low Noise Planetary Gears

Motor interface AA171-197 is compatible with Anaheim Stepper Motor series 14Y, 15Y, 17Y, 17Y9, and 17L, and with Anaheim Brushless Motor series BLY17xD, dual shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

Motor interface AA172-197 is compatible with Anaheim Brushless Motor series BLY17xS, single shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

Motor interface SMH40-315 is compatible with Anaheim Servo Motor series KNC-SRV-SMC40S and KNC-SRV-SMH40S. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form
