GBPS-0401-CS-007
| Gear Ratio (X:1) | 7 |
|---|---|
| Rated Output Torque (in-lbs) | 89 |
| Max Output Torque (in-lbs) | 134 |
| Backlash Maximum (arc-min) | 6 |
| Maximum Input Speed (RPM) | 6000 |
| Stages | 1 |
| Efficiency (%) | 95 |
| Torsional Rigidity (Nm/arcmin) | 1.2 |
| Weight (lbs) | 0.93 |
Interested in large quantity discount?
Product Information

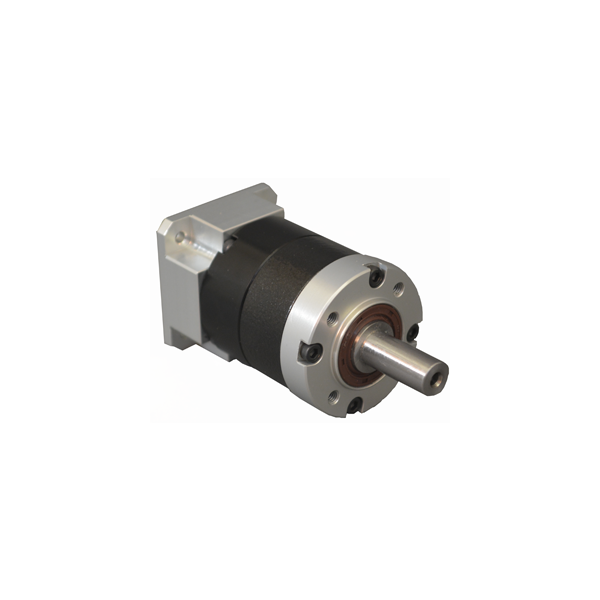

The GBPS-040x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-040x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 9 arcminutes, 20 gear ratios for rated torque up to 97 in-lbs (1557 oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Compatible with NEMA Size 17
- Backlash as Low as 9 arc-min
- Gear Ratios from 3:1 to 567:1
- Long Design Life, Over 20,000 hrs
- Up to 95 Percent Efficiency
- Max Input Speeds up to 6,000 RPM
- Lifetime Lubrication
- Low Noise Planetary Gears
Motor interface AA171-197 is compatible with Anaheim Stepper Motor series 14Y, 15Y, 17Y, 17Y9, and 17L, and with Anaheim Brushless Motor series BLY17xD, dual shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
Motor interface AA172-197 is compatible with Anaheim Brushless Motor series BLY17xS, single shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
Motor interface SMH40-315 is compatible with Anaheim Servo Motor series KNC-SRV-SMC40S and KNC-SRV-SMH40S. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
