GBPS-0602-NM-040
| Gear Ratio (X:1) | 40 |
|---|---|
| Rated Output Torque (in-lbs) | 478 |
| Max Output Torque (in-lbs) | 860 |
| Backlash Maximum (arc-min) | 5 |
| Maximum Input Speed (RPM) | 10000 |
| Stages | 2 |
| Efficiency (%) | 94 |
| Torsional Rigidity (Nm/arcmin) | 6 |

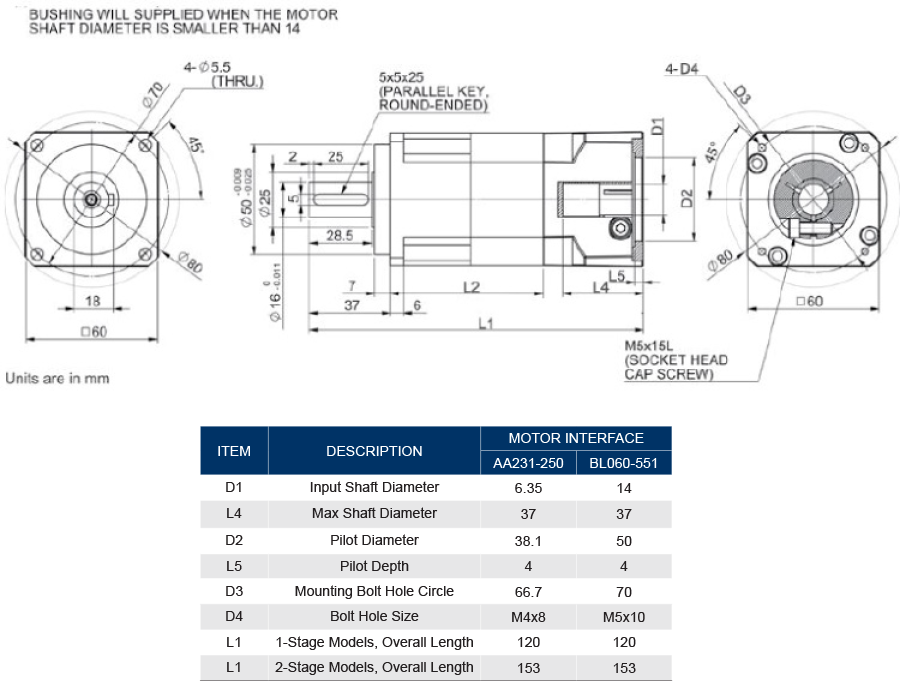

| L2 Length (mm) | 70 |
| Weight (lbs) | 4.41 |
Interested in large quantity discount?
Product Information

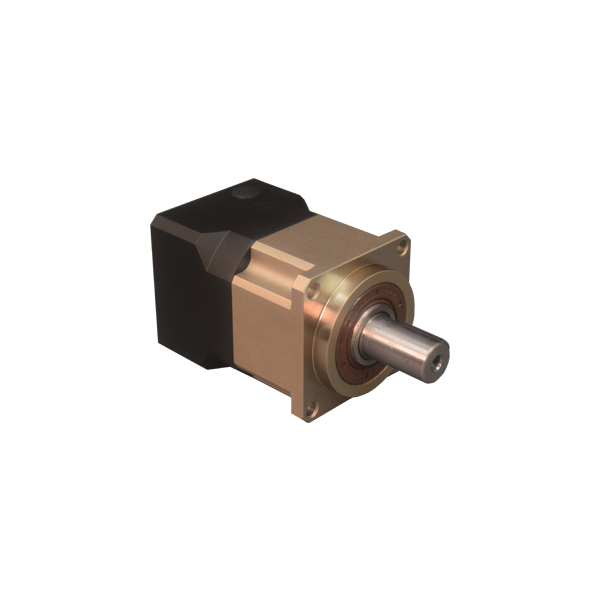

The GBPS-060x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-060x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 3 arcminutes, 22 gear ratios for rated torque up to 487 in-lbs (7,788 oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Compatible with NEMA Size 23
- Backlash as Low as 3 arc-min
- Gear Ratios from 3:1 to 100:1
- Long Design Life, Over 20,000 hrs
- Up to 97 Percent Efficiency
- Low Noise Helical Gears
- Max Input Speeds Up to 10,000 RPM
- Operating Temperature of -10° to +90° C
- Lifetime Lubrication
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:
| Motor Interface / Suffix | Anaheim Stepper Series | Anaheim BLDC Series | Anaheim Servo Series |
| AA231-250 | 23Y | BLWS23 | - |
| BLK24-551 | - | BLK24 | - |
| SMH60-551 | - | - | SMC60, SMH60, SMS60 |
