GBPS-0602-NM-100

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 100
Rated Output Torque (in-lbs) 327
Max Output Torque (in-lbs) 589
Backlash Maximum (arc-min) 5
Maximum Input Speed (RPM) 10000
Stages 2
Efficiency (%) 94
Torsional Rigidity (Nm/arcmin) 6
L2 Length (mm) 70
Weight (lbs) 4.41
Interested in large quantity discount?

Product Information

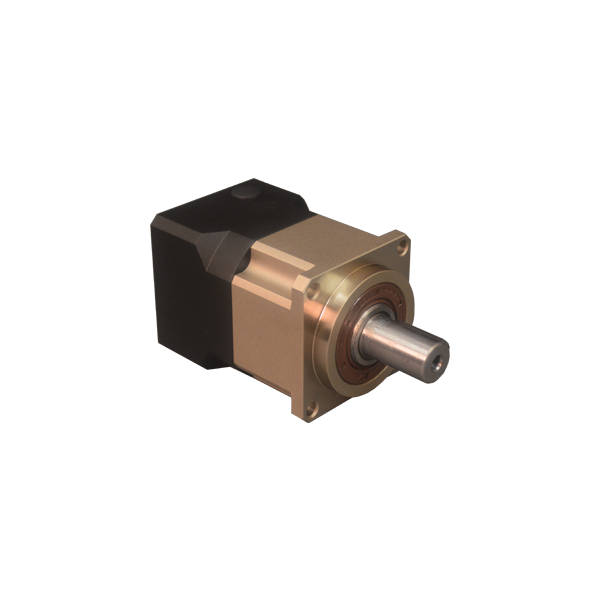

The GBPS-060x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-060x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 3 arcminutes, 22 gear ratios for rated torque up to 487 in-lbs (7,788 oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Compatible with NEMA Size 23
  • Backlash as Low as 3 arc-min
  • Gear Ratios from 3:1 to 100:1
  • Long Design Life, Over 20,000 hrs
  • Up to 97 Percent Efficiency
  • Low Noise Helical Gears
  • Max Input Speeds Up to 10,000 RPM
  • Operating Temperature of -10° to +90° C
  • Lifetime Lubrication



For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

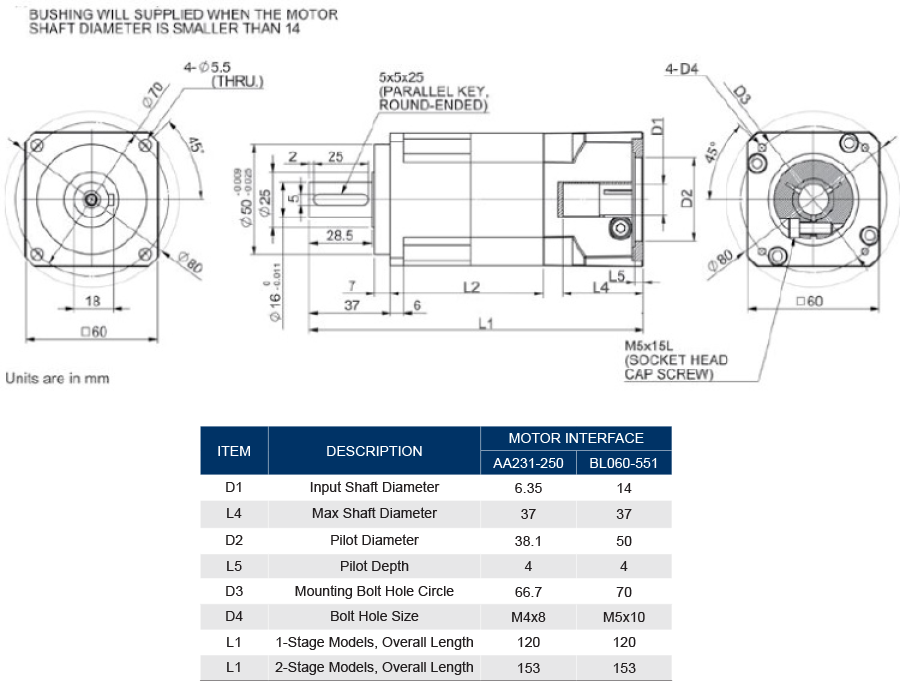

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA231-250 23Y BLWS23 -
BLK24-551 - BLK24 -
SMH60-551 - - SMC60, SMH60, SMS60

Spec Sheet (PDF)

Mounting Form
