GBPS-1421-NM-009

GBPS-1421-NM-009

GBPS-1422-NM-012

GBPS-1422-NM-012

GBPS-1421-NM-010

1pc Price:
$1,918.00
Quantity Discount
Inventory:
More Information
Gear Ratio (X:1) 10
Rated Output Torque (in-lbs) 3186
Max Output Torque (in-lbs) 5735
Backlash Maximum (arc-min) 1
Maximum Input Speed (RPM) 6000
Stages 1
Efficiency (%) 97
Torsional Rigidity (Nm/arcmin) 45
L2 Length (mm) 76
Weight (lbs) 27.87
Interested in large quantity discount?

Product Information

The GBPS-142x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-142x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 1 arcminute, 22 gear ratios for rated torque up to 4,600 in-lbs (73,600oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Backlash as Low as 1 arc-min
  • Gear Ratios from 3:1 to 100:1
  • Long Design Life, Over 20,000 hrs
  • Up to 97 Percent Efficiency
  • Low Noise Helical Gears
  • Max Input Speeds Up to 6,000 RPM
  • Operating Temperature of -10° to +90° C
  • Lifetime Lubrication

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at [email protected]

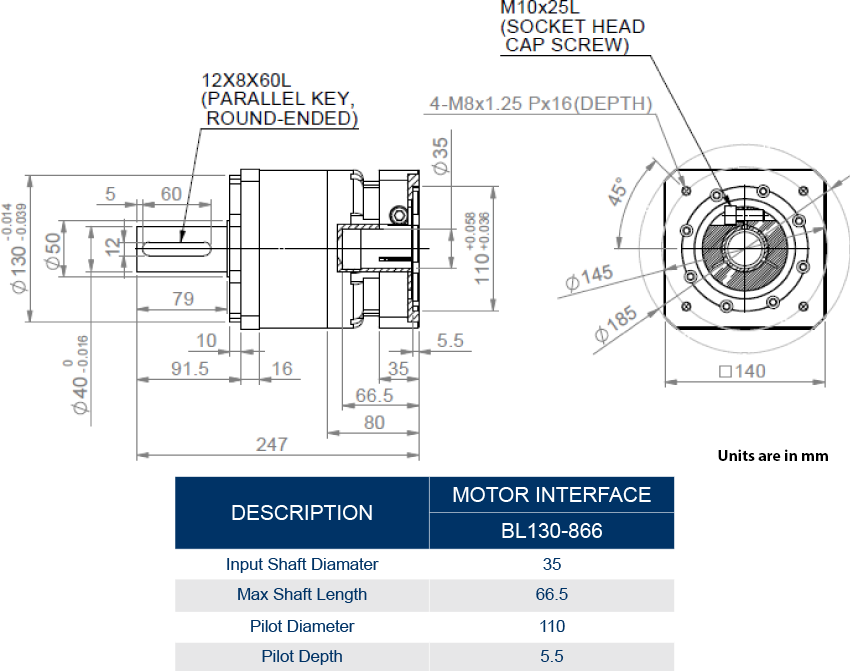

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
BL130-866 - -

KNC-SRV-SMC130

Spec Sheet (PDF)

Mounting Form
