GBPS-1802-NM-090
| Gear Ratio (X:1) | 90 |
|---|---|
| Rated Output Torque (in-lbs) | 7081 |
| Max Output Torque (in-lbs) | 12746 |
| Backlash Maximum (arc-min) | 3 |
| Maximum Input Speed (RPM) | 6000 |
| Stages | 2 |
| Efficiency (%) | 94 |
| Torsional Rigidity (Nm/arcmin) | 75 |
| L2 Length (mm) | 166 |
| Weight (lbs) | 75.00 |
Interested in large quantity discount?
Product Information
The GBPS-180x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-180x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 1 arcminute, 22 gear ratios for rated torque up to 9294 in-lbs (148,704oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Backlash as Low as 1 arc-min
- Gear Ratios from 3:1 to 100:1
- Long Design Life, Over 20,000 hrs
- Up to 97 Percent Efficiency
- Low Noise Helical Gears
- Max Input Speeds Up to 6,000 RPM
- Operating Temperature of -10° to +90° C
- Lifetime Lubrication

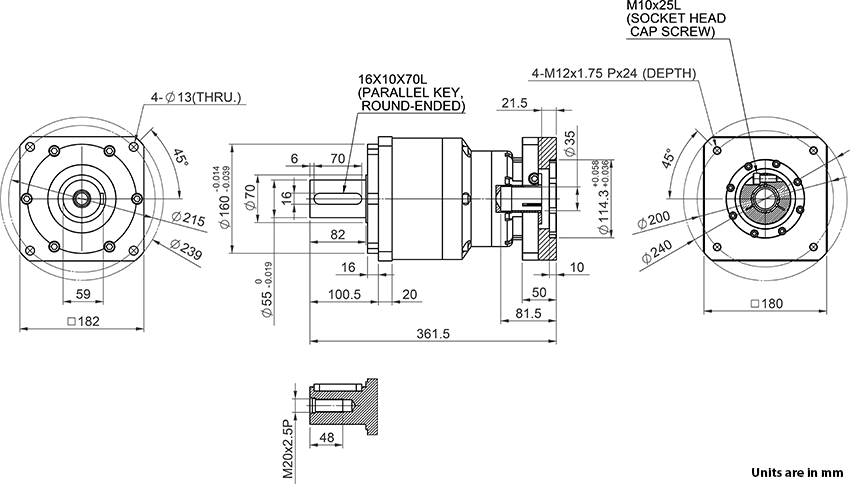

GBPS-1802-NM-090-BL180-1378
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at [email protected]
