GBPN-080x
GBPN-080x | Anaheim Automation, Inc.
Information

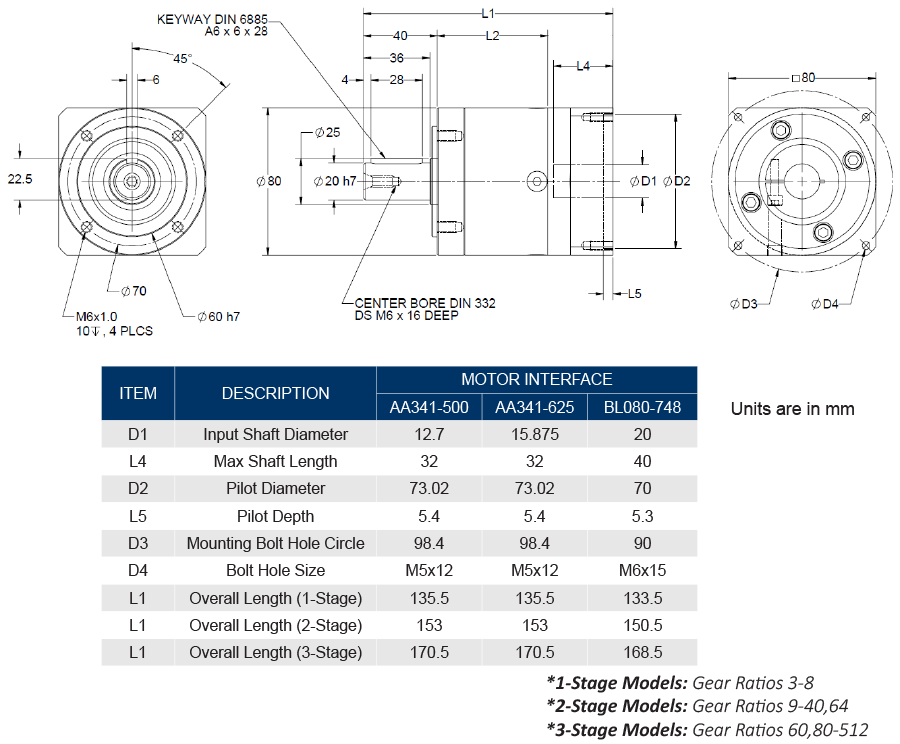

.png)
The GBPN-080x Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with the highest torque density possible for motion control, automation, and robotic applications requiring a compact solution. This planetary gearbox series is an ideal match for the NEMA 34 frame size as well as your servo, stepper, brushless, AC or DC motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Compatable with NEMA Size 34 Motors
- Backlash as Low as 7 arc-min
- Gear Ratios from 3:1 to 512:1
- Long Design Life, Over 30,000 Hours
- Up to 96 Percent Efficiency
- Peak Input Speeds of Up to 7000 rpm
- Rated Output Torque 443 to 1151 in-lb
| Item | Gear Ratio (X:1) | Rated Output Torque (in-lbs) | Max Output Torque (in-lbs) | Backlash Maximum (arc-min) | Maximum Input Speed (RPM) | Stages | Efficiency (%) | Torsional Rigidity (Nm/arcmin) | L2 Length (mm) | Weight (lbs) | 1pc Price (USD) | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GBPN-0803-512 | 512 | 443 | 885 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | Call Us Contact Us |
| GBPN-0803-320 | 320 | 974 | 1947 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | Call Us Contact Us |
| GBPN-0803-256 | 256 | 1062 | 2499 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | |
| GBPN-0803-200 | 200 | 974 | 1947 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | Call Us Contact Us |
| GBPN-0803-160 | 160 | 1062 | 2499 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | Call Us Contact Us |
| GBPN-0803-120 | 120 | 974 | 1947 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | Call Us Contact Us |
| GBPN-0803-100 | 100 | 1062 | 2499 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | |
| GBPN-0803-080 | 80 | 1062 | 2499 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | Call Us Contact Us |
| GBPN-0803-060 | 60 | 974 | 1947 | 11 | 7000 | 3 | 90 | 6.3 | 95 | 6.83 | $722.00 | Call Us Contact Us |
| GBPN-0802-064 | 64 | 443 | 885 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-040 | 40 | 974 | 1947 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-032 | 32 | 1062 | 2499 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-025 | 25 | 974 | 1947 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-020 | 20 | 1062 | 2499 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-016 | 16 | 1062 | 2499 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-015 | 15 | 974 | 1947 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-012 | 12 | 1062 | 2499 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0802-009 | 9 | 1151 | 2301 | 9 | 7000 | 2 | 94 | 6.5 | 77.5 | 5.73 | $597.00 | Call Us Contact Us |
| GBPN-0801-008 | 8 | 443 | 885 | 7 | 7000 | 1 | 96 | 6 | 60 | 4.63 | $512.00 | Call Us Contact Us |
| GBPN-0801-005 | 5 | 974 | 1947 | 7 | 7000 | 1 | 96 | 6 | 60 | 4.63 | $512.00 | Call Us Contact Us |
| GBPN-0801-004 | 4 | 1018 | 2306 | 7 | 7000 | 1 | 96 | 6 | 60 | 4.63 | $512.00 | Call Us Contact Us |
| GBPN-0801-003 | 3 | 752 | 1505 | 7 | 7000 | 1 | 96 | 6 | 60 | 4.63 | $512.00 | Call Us Contact Us |
Additional Information

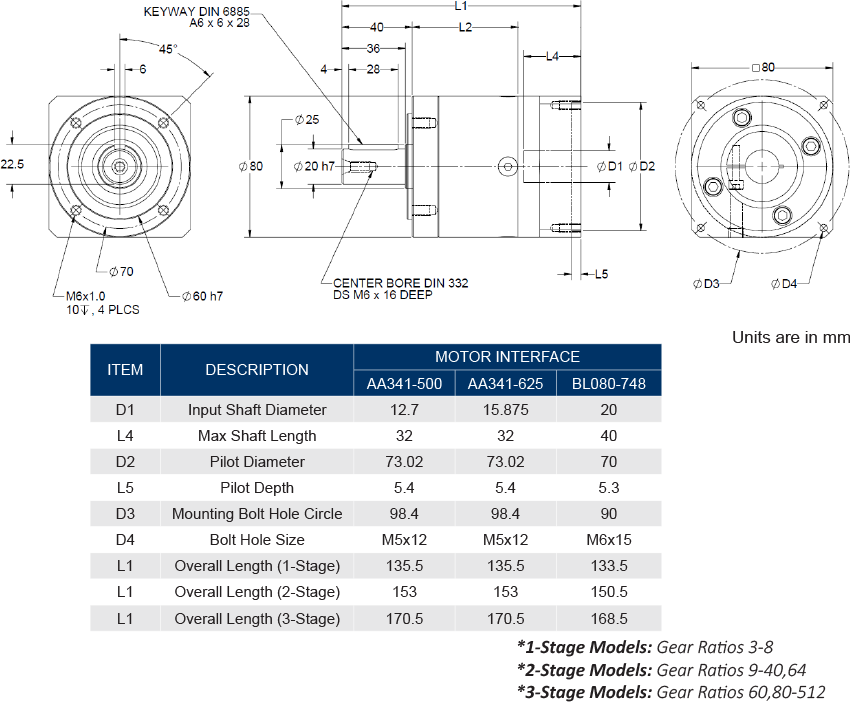

.png)
Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
