GBPN-120x

GBPN-120x | Anaheim Automation, Inc.

Information

The GBPN-120x Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with the highest torque density possible for motion control, automation, and robotic applications requiring a compact solution. This planetary gearbox series is an ideal match for the NEMA 42 frame size as well as your servo, stepper, brushless, AC or DC motors. Built with the design goal of offering a cost-effective product without sacrificing quality, this Planetary Gearbox offers an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Compatable with NEMA Size 42 Motors
  • Backlash as Low as 7 arc-min
  • Gear Ratios from 3:1 to 512:1
  • Long Design Life, Over 30,000 Hours
  • Up to 96 Percent Efficiency
  • Peak Input Speeds of Up to 6500 rpm
  • Rated Output Torque 1018 to 2301 in-lb

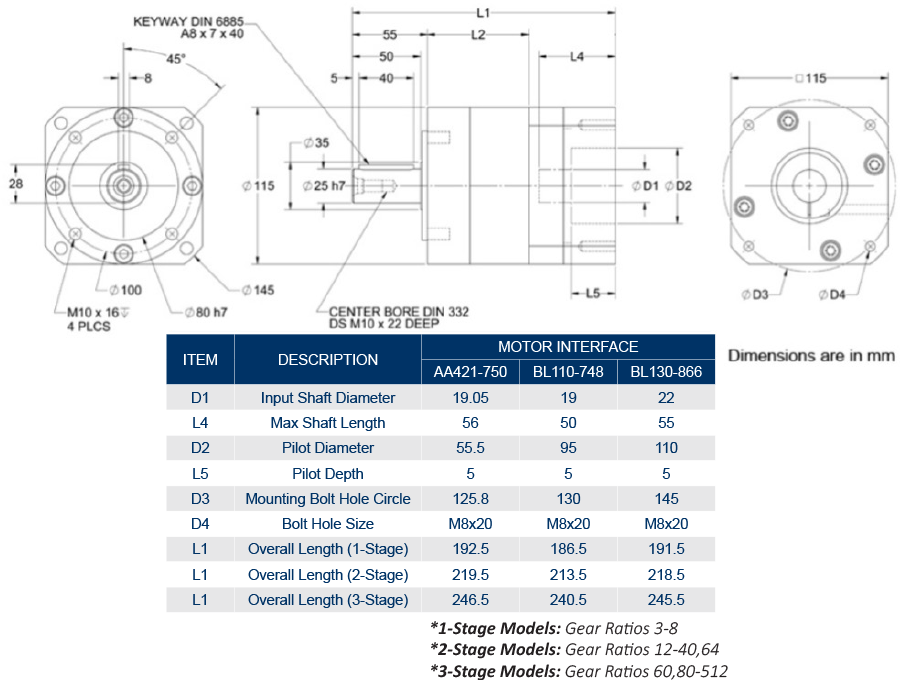

Item (click for more information) Gear Ratio (X:1) Rated Output Torque (in-lbs) Max Output Torque (in-lbs) Backlash Maximum (arc-min) Maximum Input Speed (RPM) Stages Efficiency (%) Torsional Rigidity (Nm/arcmin) L2 Length (mm) Weight (lbs) 1pc Price (USD) Add to Cart
Sort by Name GBPN-1203-512 Gear Ratio (X:1) 512 Rated Output Torque (in-lbs) 1250 Max Output Torque (in-lbs) 1699 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-320 Gear Ratio (X:1) 320 Rated Output Torque (in-lbs) 2036 Max Output Torque (in-lbs) 3257 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-256 Gear Ratio (X:1) 256 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-200 Gear Ratio (X:1) 200 Rated Output Torque (in-lbs) 2036 Max Output Torque (in-lbs) 3257 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-160 Gear Ratio (X:1) 160 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-120 Gear Ratio (X:1) 120 Rated Output Torque (in-lbs) 2037 Max Output Torque (in-lbs) 3257 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-100 Gear Ratio (X:1) 100 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-080 Gear Ratio (X:1) 80 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1203-060 Gear Ratio (X:1) 60 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 11 Maximum Input Speed (RPM) 6500 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 128 Weight (lbs) 22.05 1pc Price (USD) $1,182.00 Configure
Sort by Name GBPN-1202-064 Gear Ratio (X:1) 64 Rated Output Torque (in-lbs) 1062 Max Output Torque (in-lbs) 1699 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-040 Gear Ratio (X:1) 40 Rated Output Torque (in-lbs) 2036 Max Output Torque (in-lbs) 3257 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-032 Gear Ratio (X:1) 32 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-025 Gear Ratio (X:1) 25 Rated Output Torque (in-lbs) 2036 Max Output Torque (in-lbs) 3257 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-020 Gear Ratio (X:1) 20 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-016 Gear Ratio (X:1) 16 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-015 Gear Ratio (X:1) 15 Rated Output Torque (in-lbs) 2036 Max Output Torque (in-lbs) 3257 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-012 Gear Ratio (X:1) 12 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 3682 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1202-009 Gear Ratio (X:1) 9 Rated Output Torque (in-lbs) 1859 Max Output Torque (in-lbs) 2974 Backlash Maximum (arc-min) 9 Maximum Input Speed (RPM) 6500 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 13 L2 Length (mm) 101 Weight (lbs) 17.64 1pc Price (USD) $1,068.00 Configure
Sort by Name GBPN-1201-008 Gear Ratio (X:1) 8 Rated Output Torque (in-lbs) 1062 Max Output Torque (in-lbs) 1699 Backlash Maximum (arc-min) 7 Maximum Input Speed (RPM) 6500 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 74 Weight (lbs) 13.23 1pc Price (USD) $814.00 Configure
Sort by Name GBPN-1201-005 Gear Ratio (X:1) 5 Rated Output Torque (in-lbs) 1726 Max Output Torque (in-lbs) 2762 Backlash Maximum (arc-min) 7 Maximum Input Speed (RPM) 6500 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 74 Weight (lbs) 13.23 1pc Price (USD) $814.00 Configure
Sort by Name GBPN-1201-004 Gear Ratio (X:1) 4 Rated Output Torque (in-lbs) 1372 Max Output Torque (in-lbs) 2195 Backlash Maximum (arc-min) 7 Maximum Input Speed (RPM) 6500 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 74 Weight (lbs) 13.23 1pc Price (USD) $814.00 Configure
Sort by Name GBPN-1201-003 Gear Ratio (X:1) 3 Rated Output Torque (in-lbs) 1018 Max Output Torque (in-lbs) 1629 Backlash Maximum (arc-min) 7 Maximum Input Speed (RPM) 6500 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 12 L2 Length (mm) 74 Weight (lbs) 13.23 1pc Price (USD) $814.00 Configure
