GBPNR-040x-CS

GBPNR-040x-CS | Anaheim Automation, Inc.

Information

The GBPNR-040x-CS Series is a right-angle planetary gearbox that is ideal for motion control applications wherein the power flow needs to be redirected. The input flange is adaptable to be compatible with most NEMA 17 (40mm) servo, stepper, AC, or DC motor. These economical gearboxes offer the industry's highest torque ratings with four planets used in the output stage to boost the load capacity. The GBPNR-040x-CS Series features 22 gear ratios from 3 to 512, with rated torque up to 177 in-lbs (2,832 oz-in), (model dependent). Lifetime lubrication makes them maintenance free! Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Gear Ratios from 3 to 512
  • Backlash Lower Than 36 arc-min
  • Available in 1, 2 and 3 Stage Models
  • Lifetime Lubrication
  • High Durability
Item Gear Ratio (X:1) Rated Output Torque (in-lbs) Max Output Torque (in-lbs) Backlash Maximum (arc-min) Maximum Input Speed (RPM) Stages Efficiency (%) Torsional Rigidity (Nm/arcmin) L1 Length (mm) L2 Length (mm) Weight (lbs) 1pc Price (USD) Add to Cart
Sort by Name GBPNR-0403-CS-512 Gear Ratio (X:1) 512 Rated Output Torque (in-lbs) 66 Max Output Torque (in-lbs) 106 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-320 Gear Ratio (X:1) 320 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-256 Gear Ratio (X:1) 256 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-200 Gear Ratio (X:1) 200 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-160 Gear Ratio (X:1) 160 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-120 Gear Ratio (X:1) 120 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-100 Gear Ratio (X:1) 100 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-080 Gear Ratio (X:1) 80 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0403-CS-060 Gear Ratio (X:1) 60 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 28 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 88 Torsional Rigidity (Nm/arcmin) 1 L1 Length (mm) 135 L2 Length (mm) 64 Weight (lbs) 1.60 1pc Price (USD) $734.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-064 Gear Ratio (X:1) 64 Rated Output Torque (in-lbs) 66 Max Output Torque (in-lbs) 106 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-040 Gear Ratio (X:1) 40 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-032 Gear Ratio (X:1) 32 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-025 Gear Ratio (X:1) 25 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-020 Gear Ratio (X:1) 20 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-016 Gear Ratio (X:1) 16 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-015 Gear Ratio (X:1) 15 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00
Sort by Name GBPNR-0402-CS-012 Gear Ratio (X:1) 12 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0402-CS-009 Gear Ratio (X:1) 9 Rated Output Torque (in-lbs) 146 Max Output Torque (in-lbs) 230 Backlash Maximum (arc-min) 25 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 92 Torsional Rigidity (Nm/arcmin) 1.1 L1 Length (mm) 123 L2 Length (mm) 52 Weight (lbs) 1.35 1pc Price (USD) $710.00 Call Us Contact Us
Sort by Name GBPNR-0401-CS-008 Gear Ratio (X:1) 8 Rated Output Torque (in-lbs) 53 Max Output Torque (in-lbs) 89 Backlash Maximum (arc-min) 21 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 0.7 L1 Length (mm) 110 L2 Length (mm) 39 Weight (lbs) 1.12 1pc Price (USD) $660.00 Call Us Contact Us
Sort by Name GBPNR-0401-CS-005 Gear Ratio (X:1) 5 Rated Output Torque (in-lbs) 66 Max Output Torque (in-lbs) 106 Backlash Maximum (arc-min) 21 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 0.7 L1 Length (mm) 110 L2 Length (mm) 39 Weight (lbs) 1.12 1pc Price (USD) $660.00 Call Us Contact Us
Sort by Name GBPNR-0401-CS-004 Gear Ratio (X:1) 4 Rated Output Torque (in-lbs) 53 Max Output Torque (in-lbs) 89 Backlash Maximum (arc-min) 21 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 0.7 L1 Length (mm) 110 L2 Length (mm) 39 Weight (lbs) 1.12 1pc Price (USD) $660.00 Call Us Contact Us
Sort by Name GBPNR-0401-CS-003 Gear Ratio (X:1) 3 Rated Output Torque (in-lbs) 40 Max Output Torque (in-lbs) 62 Backlash Maximum (arc-min) 21 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 0.7 L1 Length (mm) 110 L2 Length (mm) 39 Weight (lbs) 1.12 1pc Price (USD) $660.00 Call Us Contact Us
Loading...

Additional Information

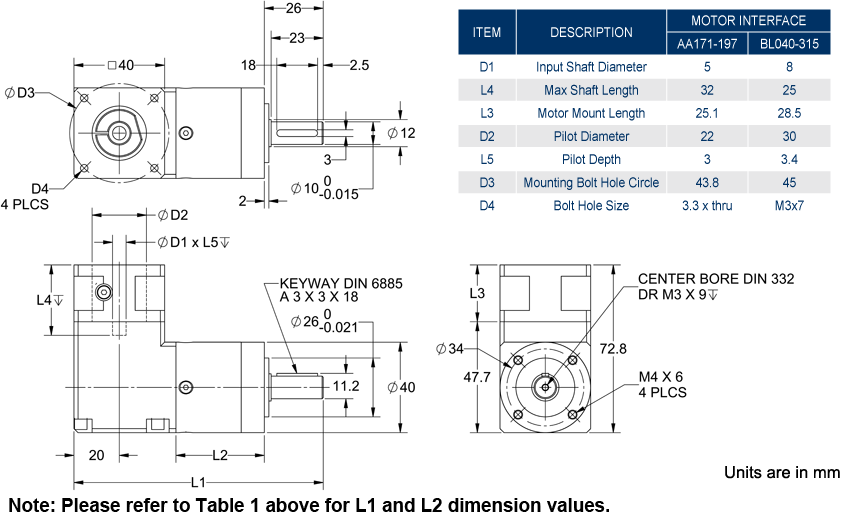

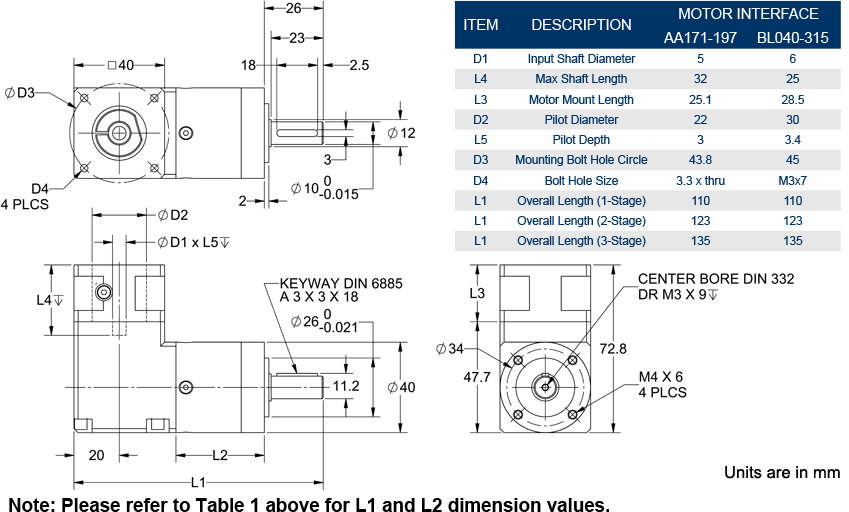

Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.

For custom input dimensions, or non-Anaheim Automation motors, fill out our  Gearbox Mounting Form  and submit it to our Sales Engineers at sales@anaheimautomation.com
