Kinco Integrated Servo Wheel iWMC

KNC-IWMC10411-04023-A180-MADT

17Y65102S-CS4

17Y65102S-CS4

KNC-IWMC10411-04023-A180-MBDT

1pc Price:
$1,073.00
Quantity Discount
  • Buy 10 for $929.17 each and save 13%
  • Buy 25 for $902.23 each and save 16%
  • Buy 50 for $889.34 each and save 17%
  • Buy 100 for $876.82 each and save 18%
Inventory:

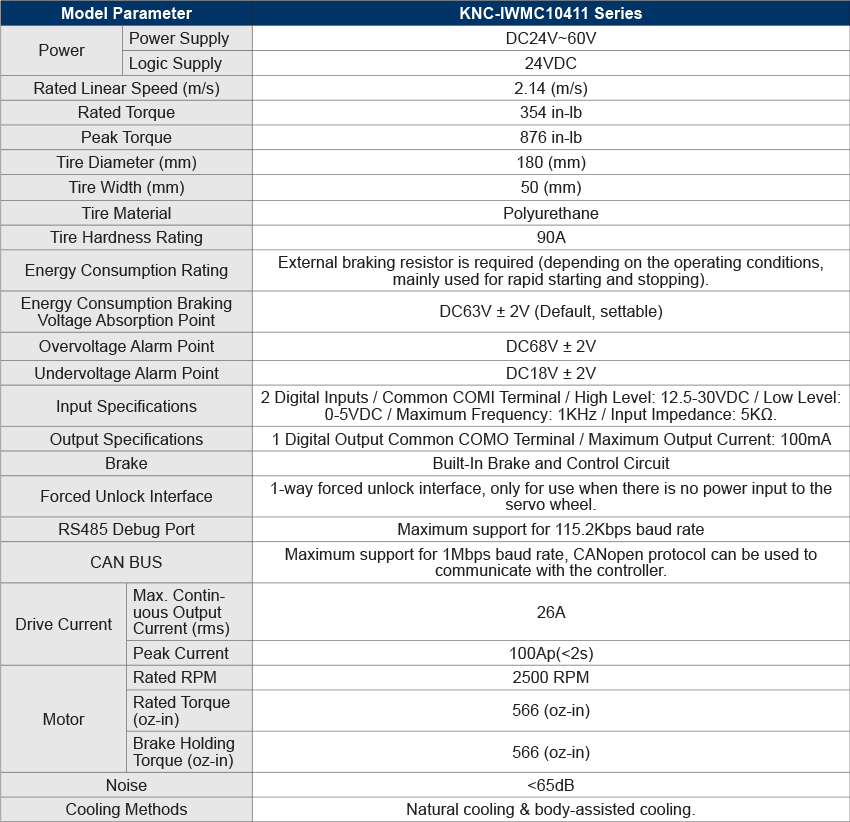

More Information
Wheel Diameter (mm) 180
Wheel Width (mm) 50
Input Voltage Range (VDC) 24-60
Rated Linear Speed (m/s) 2.14
Rated Torque (Nm) 40
Rated Current (Arms) 26
Interested in large quantity discount?

Product Information

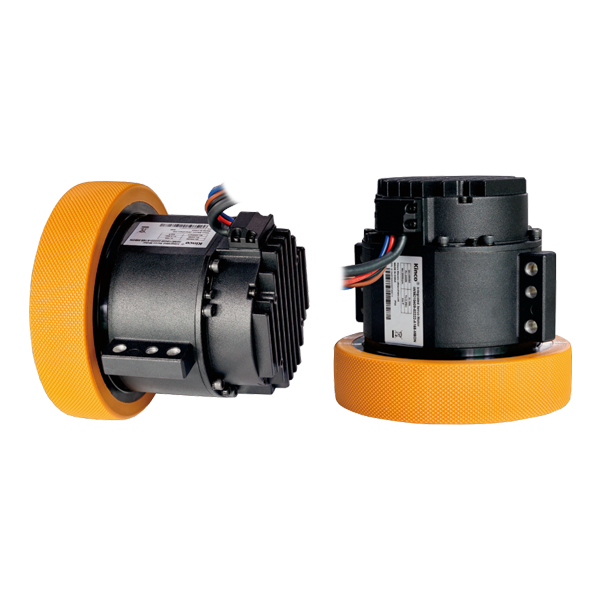

The KNC-IWMC10411 Integrated Servo Wheel includes a Servo Driver, Servo Motor, Gearhead and Rubber Wheel, all highly integrated in one unique product. This Integrated Servo Wheel creates a compact Servo System which uses less space than a typical Servo System, facilitating downsizing. These packages are ideal and provide easy start-ups, convenience, and performance. The Servo Motors included in these packages provide torque up to 14019 oz-in. The Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate in position control mode with either pulse and direction inputs, internal position points, or internal speed points.

  • 24-60VDC
  • 180mm Wheel Frame Size
  • 104mm Motor Frame Size
  • Singleturn Magnetic Encoder
  • 2.14m/s Rated Linear Speed
  • 5664 oz-in Rated Torque
  • Standard CANopen Communication
  • Position and Speed Control
  • 24V Logic Power Supply

Spec Sheet (PDF)
