KNC-PKS-FD124S-02-60S-MBK-DSU

1pc Price:
$501.00
Quantity Discount
  • Buy 10 for $488.22 each and save 3%
  • Buy 25 for $479.35 each and save 4%
  • Buy 50 for $447.74 each and save 11%
  • Buy 100 for $422.59 each and save 16%
Inventory:
3
More Information
Rated Voltage 24-70 VDC
Rated Speed (RPM) 3000
Rated Torque (oz-in) 91
Rated Current (Arms) 5.1
Inertia (oz-in-sec2) 0.00309
Torque Constant KT (oz-in/A) 18.7
Resistance (ohms) 0.889
Inductance (mH) 1.51
Brake (24VDC) Yes
Motor Length (mm) 121
Shaft Diameter (mm) 14
Interested in large quantity discount?

Product Information

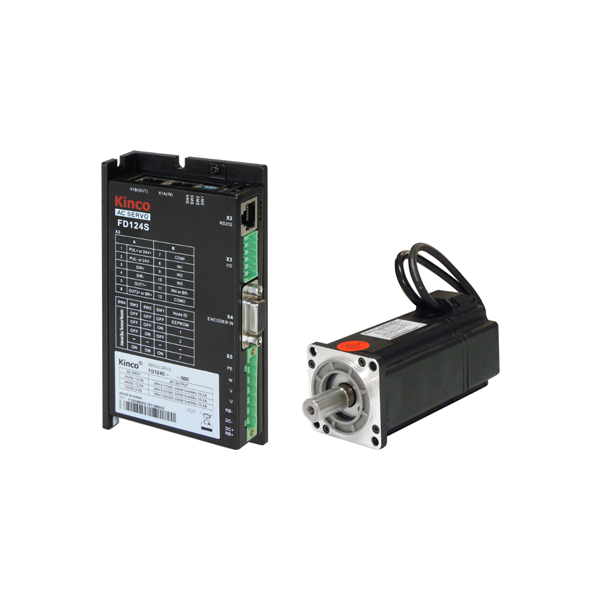

The KNC-PKS-FD124S-02-60S-MBK-DSU Servo System includes a 200 Watt KNC-SRV-SMC60S-0020-30MBK-3DSU Servo Motor with brake, operated by the KNC-SRV-FD124S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and performance. The KNC-SRV-SMC60S-0020-30MBK-3DSU motor provides peak torque up to 272 oz-in. The KNC-SRV-FD124S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. This system also includes a 5m Motor Power Cable, 5m Brake Cable, 5m Encoder Cable, and a Communication cable.

  • 24-70VDC
  • Rated Torque of 91 oz-in
  • Power Ratings up to 200 Watts
  • Maximum Speed of 3500 RPM
  • 16 Bit Single-Turn Magnetic Encoder or 2500 PPR Incremental Encoder
  • IP65 for Body, IP54 Shaft Seal
  • Position, Speed, and Torque Control
  • RS232 and RS485 Port

User Manual (PDF)

Spec Sheet (PDF)

Software Download
