KNC-PKS-FD322S-02-60S-AAK-AKH
| Rated Voltage | 88-126 VAC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 91 |
| Rated Current (Arms) | 1.9 |
| Inertia (oz-in-sec2) | 0.0053 |
| Torque Constant KT (oz-in/A) | 33.98 |
| Resistance (ohms) | 8.02 |
| Inductance (mH) | 16.3 |
| Brake (24VDC) | No |
| Motor Length (mm) | 120 |
| Shaft Diameter (mm) | 14 |
Interested in large quantity discount?
Product Information

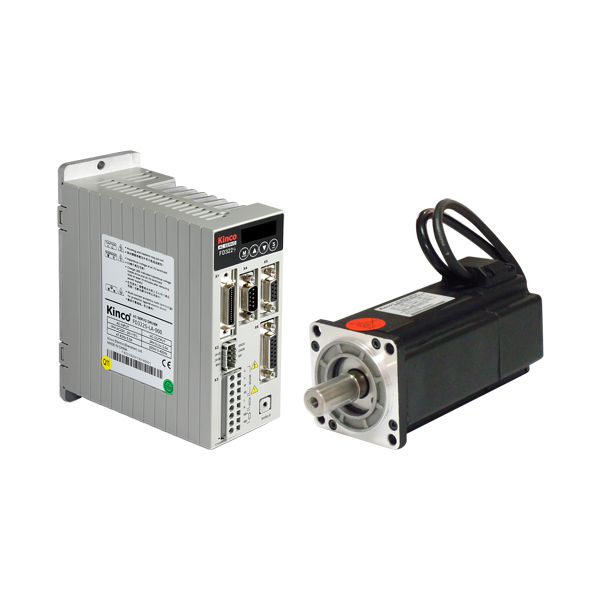

The KNC-PKS-FD322S-02-60S-AAK-AKH Servo System includes a 200 Watt AC Servo Motor, SMH60S-0020-30AAK-3AKH, operated by the FD322S-LA-000 Drive. This package provides easy start-up, convenience, and high performance. The SMH60S-0020-30AAK-3AKH motor provides torque up to 91 oz-in. The FD322S-LA-000 Drive offers current forward-feedback control, acceleration forward-feedback control, speed viewer, and inertia viewer, providing for improved response performance. This system also includes a 5m Motor Power Cable and a 5m Encoder Cable.
For replacement cables and additional servo system accessories, click here.
- 88-126VAC Single-Phase Input Voltage
- Rated Torque of 91 oz-in
- Power Ratings up to 200 Watts
- 2500 PPR Incremental Encoder
- Maximum Speed of 3000 RPM
- IP65 for Body, IP54 Shaft Seal
- Brake Option Available
- Position, Speed, and Torque Control
- RS232 and RS485 Port
