KNC-PKS-FD144S-13-H11D-ABK-DKR

KNC-PKS-FD144S-13-H11D-ABK-DKR

KNC-PKS-FD144S-15-C13D-ABK-DKR

KNC-PKS-FD144S-15-C13D-ABK-DKR

KNC-PKS-FD144S-15-C13D-AAK-DKR

1pc Price:
$1,262.00
Quantity Discount
  • Buy 10 for $1,238.07 each and save 2%
  • Buy 25 for $1,124.32 each and save 11%
  • Buy 50 for $1,058.34 each and save 16%
  • Buy 100 for $1,031.14 each and save 18%
Inventory:
More Information
Rated Voltage 24-70 VDC
Rated Speed (RPM) 3000
Rated Torque (oz-in) 708
Rated Current (Arms) 37.4
Inertia (oz-in-sec2) 0.16993
Torque Constant KT (oz-in/A) 19.9
Resistance (ohms) 0.03
Inductance (mH) 0.2
Brake (24VDC) No
Motor Length (mm) 163
Shaft Diameter (mm) 22
Interested in large quantity discount?

Product Information

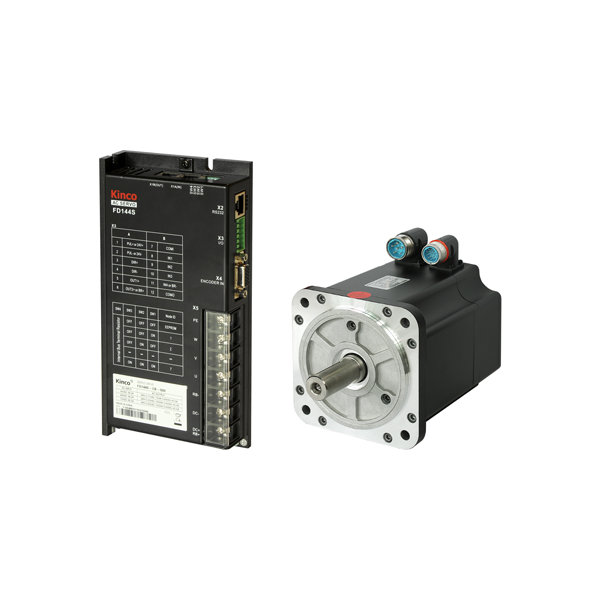

The KNC-PKS-FD144S-15-C13D-AAK-DKR Servo System includes a 1500 Watt KNC-SRV-SMC130D-0150-30AAK-4DKR Servo Motor operated by the KNC-SRV-FD144S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMC130D-0150-30AAK-4DKR motor provides torque up to 1770 oz-in. The KNC-SRV-FD144S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. This system also includes a 5m Motor Power Cable, 5m Encoder Cable, and a Communication cable.

  • 24-70VDC
  • Rated Torque of 708 oz-in
  • Power Ratings up to 1500 Watts
  • Maximum Speed of 4000 RPM
  • 2500 PPR Incremental Encoder
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • Position, Speed, and Torque Control
  • RS232 and RS485 Port

User Manual (PDF)

Spec Sheet (PDF)

Software Download
