KNC-PKS-FD144S-15-C13D-ABK-DKR
| Rated Voltage | 24-70 VDC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 708 |
| Rated Current (Arms) | 37.4 |
| Inertia (oz-in-sec2) | 0.17135 |
| Torque Constant KT (oz-in/A) | 19.9 |
| Resistance (ohms) | 0.03 |
| Inductance (mH) | 0.2 |
| Brake (24VDC) | Yes |
| Motor Length (mm) | 224 |
| Shaft Diameter (mm) | 22 |
Interested in large quantity discount?
Product Information

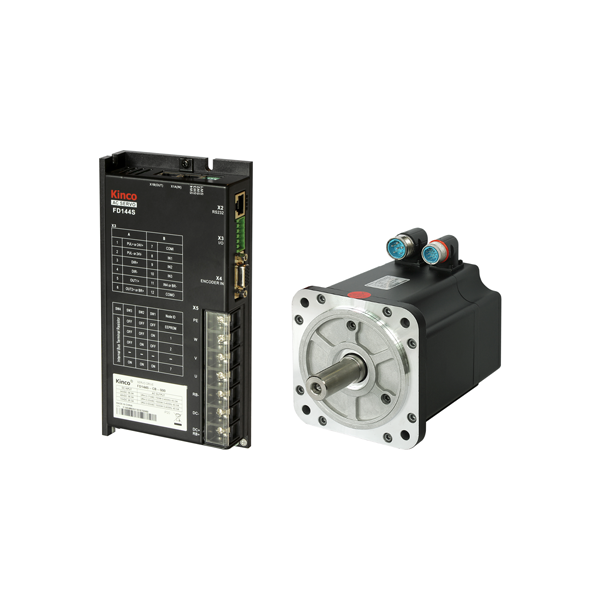

The KNC-PKS-FD144S-15-C13D-ABK-DKR Servo System includes a 1500 Watt KNC-SRV-SMC130D-0150-30ABK-4DKR Servo Motor with brake, operated by the KNC-SRV-FD144S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMC130D-0150-30ABK-4DKR motor provides torque up to 1770 oz-in. The KNC-SRV-FD144S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. This system also includes a 5m Motor Power Cable, 5m Brake Cable, 5m Encoder Cable, and a Communication cable.
- 24-70VDC
- Rated Torque of 708 oz-in
- Power Ratings up to 1500 Watts
- Maximum Speed of 4000 RPM
- 2500 PPR Incremental Encoder
- IP65 for Body, IP54 Shaft Seal
- Brake Option Available
- Position, Speed, and Torque Control
- RS232 and RS485 Port
.png)
.png)
.png)
.png)
.png)
.png)
