KNC-PKS-FD432S-20-C13D-AAK-LKP
| Rated Voltage | 176-253 VAC |
|---|---|
| Rated Speed (RPM) | 2000 |
| Rated Torque (oz-in) | 1359 |
| Rated Current (Arms) | 8.2 |
| Inertia (oz-in-sec2) | 0.2506 |
| Torque Constant KT (oz-in/A) | 176 |
| Resistance (ohms) | 0.93 |
| Inductance (mH) | 8.8 |
| Brake (24VDC) | No |
| Motor Length (mm) | 179 |
| Shaft Diameter (mm) | 22 |
Interested in large quantity discount?
Product Information

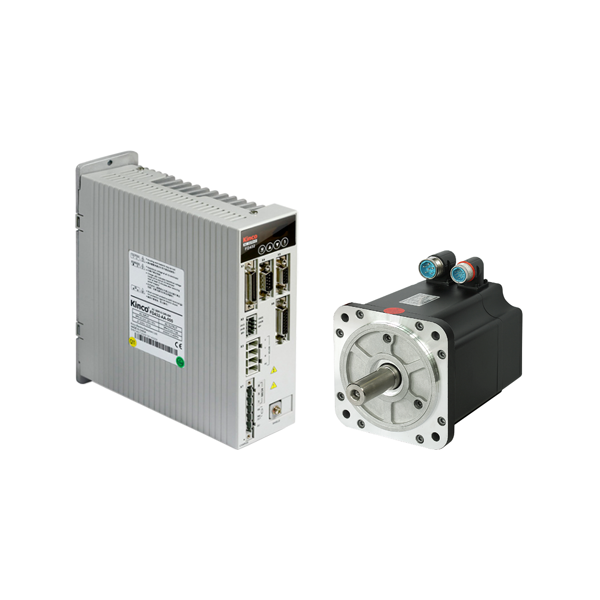

Servo System KNC-PKS-FD432S-20-C13D-AAK-LKP includes a 2000 Watt KNC-SRV-SMC130D-0200-20AAK-4LKP Servo Motor and KNC-SRV-FD432S-LA-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMC130D-0200-20AAK-4LKP motor provides torque up to 1359 oz-in. The KNC-SRV-FD432S-LA-000 Servo Drive offers current forward-feedback control, acceleration forward-feedback control, speed viewer and inertia viewer, providing for improved response performance. This system also includes a 5m Motor Power Cable and a 5m Encoder Cable.
- 176-253VAC
- Rated Torque of 1359 oz-in
- Power Ratings up to 2000 Watts
- 2500 Incremental Encoder Attached
- Maximum Speed of 5800 RPM
- IP65 for Body, IP54 Shaft Seal
- Brake Option Available
- Position, Speed and Torque Control
- RS232 and RS485 Ports
