KNC-PKS-FD322S-04-60S-AAK-AKH

1pc Price:
$549.00
Quantity Discount
  • Buy 10 for $534.15 each and save 3%
  • Buy 25 for $523.64 each and save 5%
  • Buy 50 for $489.36 each and save 11%
  • Buy 100 for $432.07 each and save 21%
Inventory:
2
More Information
Rated Voltage 88-126 VAC
Rated Speed (RPM) 3000
Rated Torque (oz-in) 180
Rated Current (Arms) 3.1
Inertia (oz-in-sec2) 0.0072
Torque Constant KT (oz-in/A) 67.97
Resistance (ohms) 3.52
Inductance (mH) 7.8
Brake (24VDC) No
Motor Length (mm) 110.8
Shaft Diameter (mm) 14
Interested in large quantity discount?

Product Information

KNC-PKS-FD322S-04-60S-AAK-AKH is LTSOH (Limited to Stock on Hand)

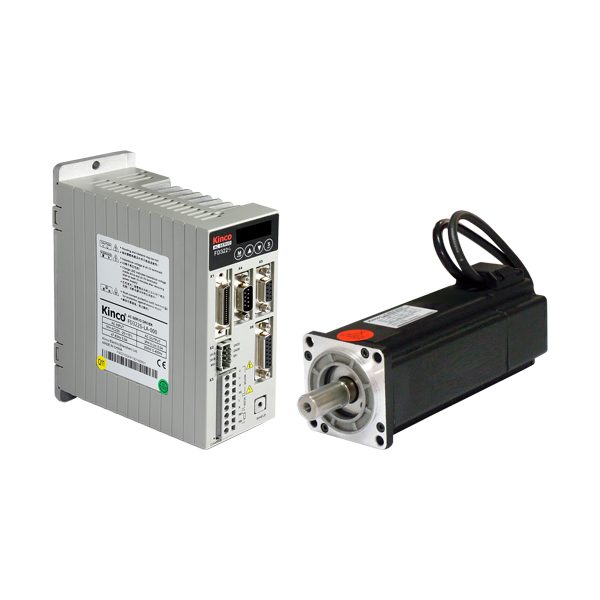

The KNC-PKS-FD322S-04-60S-AAK-AKH Servo System includes a 400 Watt SMH60S-0040-30AAK-3AKH AC Servo Motor operated by the FD322S-LA-000 Drive. These packages provide easy start-up, convenience, and high performance. The SMH60S-0040-30AAK-3AKH motor provides torque up to 180 oz-in. The FD322S-LA-000 Drive offers current forward-feedback control, acceleration forward-feedback control, speed viewer, and inertia viewer, providing for improved response performance. This system also includes a 5m Motor Power Cable and a 5m Encoder Cable.

For replacement cables and additional servo system accessories, click here.

  • 88-126VAC Single-Phase Input Voltage
  • Rated Torque of 180 oz-in
  • Power Ratings up to 400 Watts
  • 2500 PPR Incremental Encoder
  • Maximum Speed of 3000 RPM
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • Position, Speed, and Torque Control
  • RS232 and RS485 Port
