KNC-PKS-FD432S-12-H11D-ABK-LKC
| Rated Voltage | 176-253 VAC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 566 |
| Rated Current (Arms) | 6.5 |
| Inertia (oz-in-sec2) | 0.0828 |
| Torque Constant KT (oz-in/A) | 106 |
| Resistance (ohms) | 0.8 |
| Inductance (mH) | 6.4 |
| Brake (24VDC) | Yes |
| Motor Length (mm) | 228 |
| Shaft Diameter (mm) | 19 |
| Lead Time | Typ 80 Days |
Interested in large quantity discount?
Product Information

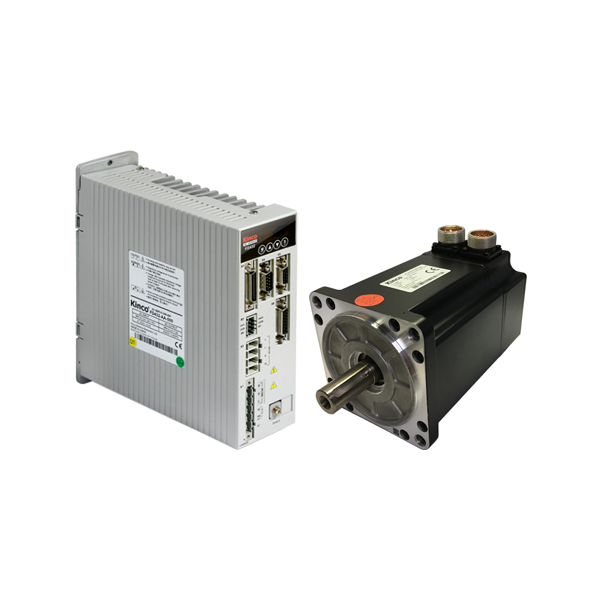

Servo System KNC-PKS-FD432S-12-H11D-ABK-LKC includes a 1250 Watt KNC-SRV-SMH110D-0125-30ABK-4LKC Servo Motor with Brake, and the KNC-SRV-FD432S-LA-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMH110D-0125-30ABK-4LKC motor provides torque up to 566 oz-in. The KNC-SRV-FD432S-LA-000 Servo Drive offers current forward-feedback control, acceleration forward-feedback control, speed viewer and inertia viewer, providing for improved response performance. This system also includes a 5m Motor Power Cable, a 5m Brake Cable, and a 5m Encoder Cable.
- 176-253VAC
- Rated Torque of 566 oz-in
- Power Ratings up to 1250 Watts
- 2500 Incremental Encoder Attached
- Maximum Speed of 5800 RPM
- IP65 for Body, IP54 Shaft Seal
- Brake Option Available
- Position, Speed and Torque Control
- RS232 and RS485 Ports
