KNC-PKS-FD432S-13-H11D-AAK-LKC
| Rated Voltage | 176-253 VAC |
|---|---|
| Rated Speed (RPM) | 2000 |
| Rated Torque (oz-in) | 850 |
| Rated Current (Arms) | 6.15 |
| Inertia (oz-in-sec2) | 0.121 |
| Torque Constant KT (oz-in/A) | 150 |
| Resistance (ohms) | 1.26 |
| Inductance (mH) | 9.6 |
| Brake (24VDC) | No |
| Motor Length (mm) | 202 |
| Shaft Diameter (mm) | 19 |
Interested in large quantity discount?
Product Information

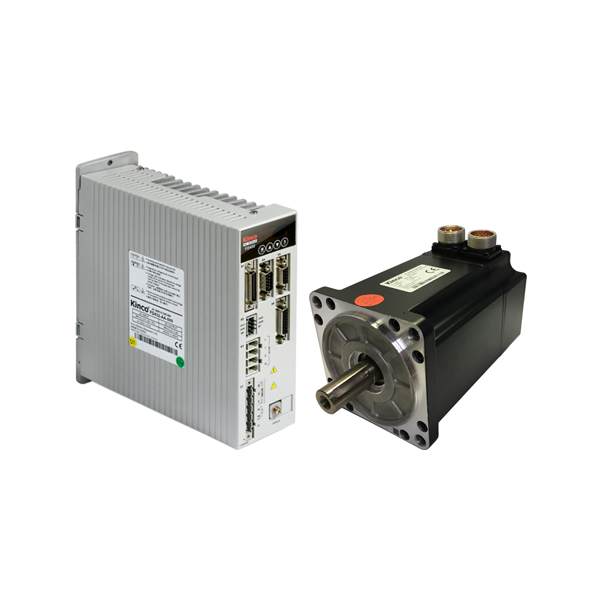

The KNC-PKS-FD432S-13-H11D-AAK-LKC Servo System includes a 1260 Watt KNC-SRV-SMH110D-0126-20AAK-4LKC Servo Motor and KNC-SRV-FD432S-LA-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMH110D-0126-20AAK-4LKC motor provides torque up to 850 oz-in. The KNC-SRV-FD432S-LA-000 Servo Drive offers current forward-feedback control, acceleration forward-feedback control, speed viewer and inertia viewer, providing for improved response performance. This system also includes a 5m Motor Power Cable and a 5m Encoder Cable.
- 176-253VAC
- Rated Torque of 850 oz-in
- Power Ratings up to 1260 Watts
- 2500 Incremental Encoder Attached
- Maximum Speed of 2850 RPM
- IP65 for Body, IP54 Shaft Seal
- Brake Option Available
- Position, Speed and Torque Control
- RS232 and RS485 Ports
