KNC-PLC-K522-08DT

KNC-PLC-K522-08DT

KNC-PLC-K523-08DR

KNC-PLC-K523-08DR

KNC-PLC-K522-16DT

Unit Price:
$99.00
Quantity Discount
  • Buy 10 for $93.80 each and save 5%
  • Buy 25 for $89.54 each and save 10%
  • Buy 50 for $82.73 each and save 16%
  • Buy 100 for $76.15 each and save 23%
Inventory:
11
In stock
More Information
Module Type Discrete Outputs
Input Points N/A
Input Type N/A
Output Points 16
Output Type Transistor
Interested in large quantity discount?

Product Information

NOTE: The KNC-PLC-K522-16DT units have been discontinued and are now LTSOH (Limited to Stock on Hand). We recommend the KNC-PLC-K622-16DT as a replacement.

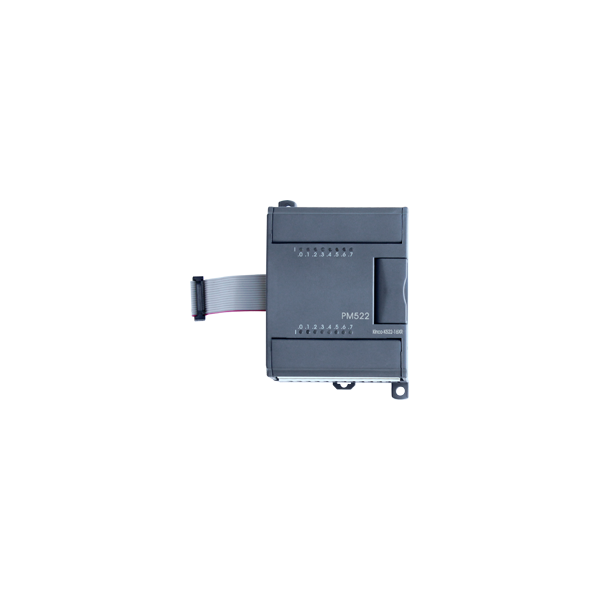

The PLC-K522 Discrete Output Expansion Modules are offered in Transistor or Relay and 8 or 16 outputs. These modules are attached to the PLC-K5 CPUs to expand beyond the onboard outputs. The PLC-K5 CPUs can handle up to 136 I/O points with a maximum of 6 expansion modules. If a user were to select the PLC-K508-40AT along with 6 PLC-K522-16DT units, the user would achieve the maximum 136 I/O points within the constraint of 6 expansion modules. The PLC-K522-__DT modules come with transistor outputs with a sourcing configuration. A sourcing output is internally pulled down to ground; the current wants to flow into the output. The-PLC-K522-__XR modules come with relay outputs that can handle loads up to 30VDC and 250VAC. Relay outputs are great to drive AC or DC motors or turn any AC or DC device on. The transistor output modules are opto-isolated for unit protection.

  • 8 or 16 Sinking or Sourcing Outputs
  • Transistor or Relay Outputs
  • Transistor Outputs are Rated for 500mA @ 24VDC
  • Maximum Relay Output: 2A @ 30VDC or 250VAC
  • Transistor Outputs are Opto-Isolated
  • LED Display to Monitor Running Conditions
  • Easy Maintenance and Installation

User Manual (PDF)

Spec Sheet (PDF)

Software Download
