KNC-PLC-K522-16DT

KNC-PLC-K522-16DT

KNC-PLC-K523-16DR

KNC-PLC-K523-16DR

KNC-PLC-K523-08DR

Unit Price:
$60.00
Quantity Discount
  • Buy 10 for $56.44 each and save 6%
  • Buy 25 for $53.87 each and save 10%
  • Buy 50 for $50.45 each and save 16%
  • Buy 100 for $45.06 each and save 25%
Inventory:
16
In stock
More Information
Module Type Discrete Inputs & Outputs
Input Points 4
Input Type Sinking or Sourcing
Output Points 4
Output Type Relay
Interested in large quantity discount?

Product Information

NOTE: The KNC-PLC-K523-08DR units have been discontinued and are now LTSOH (Limited to Stock on Hand). We recommend the KNC-PLC-K623-08DR as a replacement.

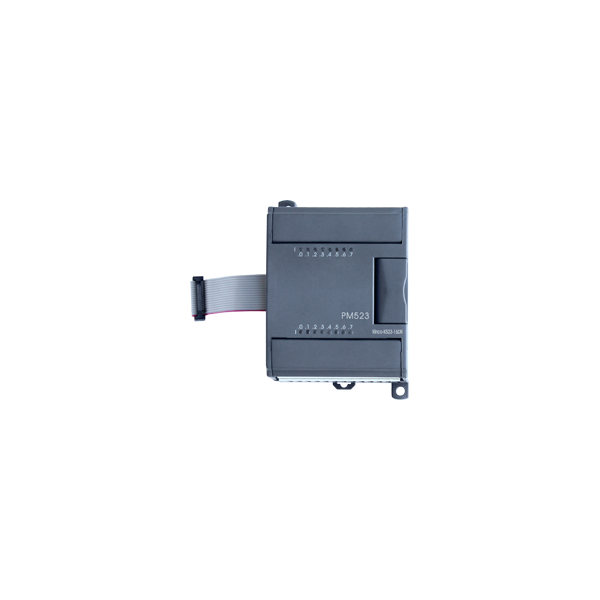

The PLC-K523 Discrete Input and Output Expansion Modules are offered in Transistor or Relay outputs and sinking or sourcing inputs. These units come with 4 inputs and 4 outputs or 8 inputs and 8 outputs. These units are ideal to expand beyond the onboard inputs and outputs of the PLC-K5 CPUs, which can handle up to 136 I/O points with a maximum of 6 expansion modules. The inputs are rated for 3.5mA and can be configured for either sourcing or sinking. The transistor outputs are rated for 500mA @ 24VDC and come only in a sourcing configuration. The relay outputs are rated for 2A @ 30VDC or 250VAC, and are great for switching on and off high load devices AC or DC devices, particularly AC or DC motors. The transistor output modules are opto-isolated for unit protection.

  • Up to 8 Sinking or Sourcing Inputs
  • Up to 8 Relay or Transitor Outputs
  • Inputs are Opto-Isolated
  • Transistor Outputs are Opto-Isolated
  • LED Display to Monitor Running Conditions
  • Easy Maintenance and Installation

User Manual (PDF)

Spec Sheet (PDF)

Software Download
