KNC-PLC-K631-04IV

KNC-PLC-K631-04IV

ENC-A5SIH-1024-250-H-G

ENC-A5SIH-1024-250-H-G

KNC-PLC-K631-04RD

Unit Price:
$130.00
Quantity Discount
  • Buy 10 for $123.44 each and save 5%
  • Buy 25 for $117.83 each and save 9%
  • Buy 50 for $114.37 each and save 12%
  • Buy 100 for $110.88 each and save 15%
  • Buy 250 for $105.78 each and save 19%
  • Buy 500 for $104.09 each and save 20%
  • Buy 1000 for $103.90 each and save 20%
  • Buy 2500 for $99.12 each and save 24%
Inventory:
0
Out of Stock
More Information
Module Type Expansion Module, Analog Inputs
Input Points 4
Input Type Pt100, Cu50, Pt1000, Cu100
Output Points N/A
Output Type N/A
Interested in large quantity discount?

Product Information

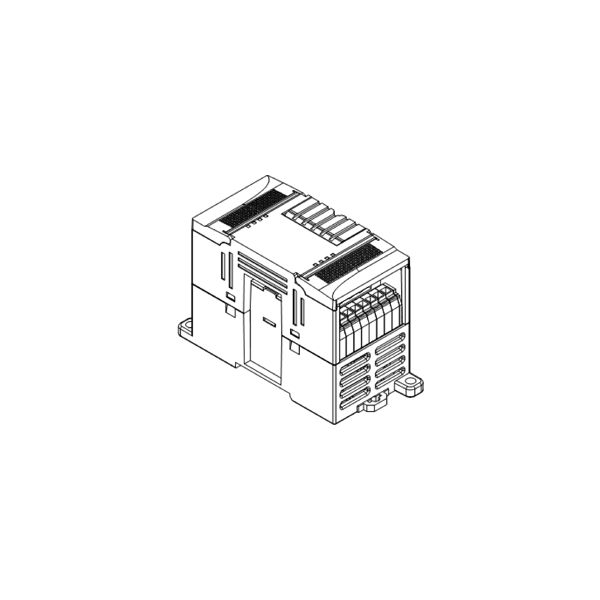

The KNC-PLC-K631 Analog Input Expansion Modules are offered for current and voltage inputs or Resistance Temperature Detector (RTD) sensor inputs. The KNC-PLC-K631-04RD is an RTD module that accepts the following sensor types: Pt100, Pt1000, Cu50, and Cu100. The KNC-PLC-K631 series has an accuracy of +/- 0.3% ensuring a precise reading. These modules are attached to the KNC-PLC-K6 CPU series to provide analog input capabilities. Up to 6 of the analog input modules can be attached to the KNC-PLC-K6 CPUs.

  • Resistance Temperature Detector Module Offered
  • Current and Voltage Input Module Offered
  • Provides Wide Input Range
  • Up to 14 Analog Input Modules in One PLC-K6 System
  • 12-bit Conversion for High-Resolution Measurement
  • Very Reliable ±0.3% Error

Software User Manual (PDF)

Spec Sheet (PDF)

Software Download
