KNC-PLC-K623-16DT

KNC-PLC-K623-16DT

KNC-PLC-K631-04RD

KNC-PLC-K631-04RD

KNC-PLC-K631-04IV

1pc Price:
$108.00
Quantity Discount
  • Buy 10 for $104.56 each and save 3%
  • Buy 50 for $97.17 each and save 10%
  • Buy 100 for $91.92 each and save 15%
Inventory:
More Information
Module Type Expansion Module, Analog Inputs
Input Points 4
Input Type 0-20mA, 4-20mA, 1-5VDC, 0-10VDC
Output Points N/A
Output Type N/A
Lead Time Typ 50 Days
Interested in large quantity discount?

Product Information

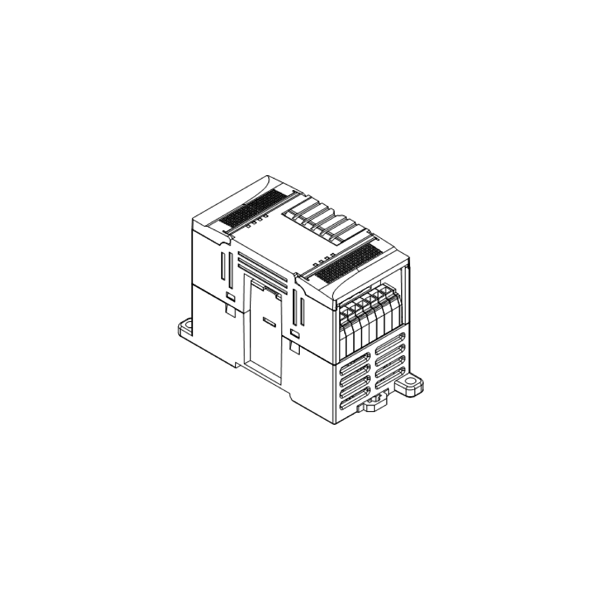

The KNC-PLC-K631 Analog Input Expansion Modules are offered for current and voltage inputs or Resistance Temperature Detector (RTD) sensor inputs. The KNC-PLC-K631-04IV performs a 12-bit conversion on the inputs for high-resolution measurement and can be configured to read voltages or currents of different ranges. The KNC-PLC-K631-04IV can accept a current range 0-20 mA or 4-20 mA, and a voltage range of 1-5 VDC or 0-10 VDC. The KNC-PLC-K631 series has an accuracy of +/- 0.3% ensuring a precise reading. These modules are attached to the KNC-PLC-K6 CPU series to provide analog input capabilities. Up to 6 of the analog input modules can be attached to the KNC-PLC-K6 CPUs.

  • Resistance Temperature Detector Module Offered
  • Current and Voltage Input Module Offered
  • Provides Wide Input Range
  • Up to 14 Analog Input Modules in One PLC-K6 System
  • 12-bit Conversion for High-Resolution Measurement
  • Very Reliable ±0.3% Error

Software User Manual (PDF)

Spec Sheet (PDF)

Software Download
