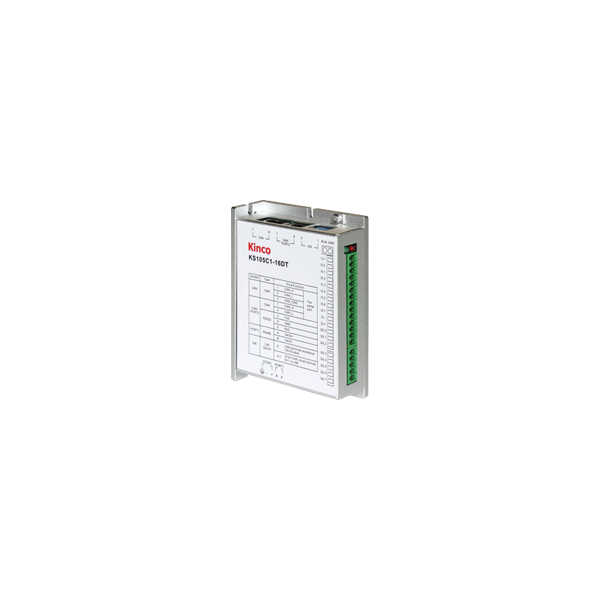

KNC-PLC-KS105-16DT
| Module Type | CPU |
|---|---|
| Input Points | 8 |
| Input Type | Sinking or Sourcing |
| Output Points | 8 |
| Output Type | Sourcing |
| Rated Voltage | 24 VDC |
| Analog Input | N/A |
| Analog Output | N/A |
| COM Ports | RS232, RS485 |
Interested in large quantity discount?
Product Information
The KNC-PLC-KS105 is a small and thin PLC with high performance. It includes 16 digital I/O, 4 high-speed counters, 4 high-speed pulse outputs, 256 timers, 256 counters, RTC (Real Time Clock), 4 interrupts, one RS485 communication port, one RS232 programming port, optional CANopen port, and is expandable with up to 14 I/O modules. The high-speed counters come in 9 operation modes and support a single-phase or dual-phase frequency up to 200 kHz. In the 9 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit preset value. Three of the four high-speed pulse outputs - channels 0,1, and 2 - can reach a maximum frequency of 200 kHz, while channel 3 can reach a maximum frequency of 10 kHz. All four high-speed output channels support both PTO and PWM. The KNC-PLC-KS105C1-16DT and KNC-PLC-KS105C2-16DT support CANopen protocol. The free KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions. The KNC-PLC-KS105 Series is an ideal hub for data processing with field devices such as temperature modules, servo drives, field busses, and more.
- Four High-Speed Counters, Max 200 kHz
- Four High-Speed Outputs, Max 200 kHz
- 24VDC Power Required
- 8 Digital Inputs, 8 Digital Outputs
- 3 year Lithium Battery for Data Retention
- Multiple Communication Ports
- 4K Bytes of Programming Instructions
- 5K Bytes of Data
- 448 Bytes of EEProm Backup
