KNC-PLC-KS105-16DT

KNC-PLC-KS105-16DT

KNC-PLC-KS105C2-16DT

KNC-PLC-KS105C2-16DT

KNC-PLC-KS105C1-16DT

Unit Price:
Inventory:
0
Out of Stock
More Information
Module Type CPU
Input Points 8
Input Type Sinking or Sourcing
Output Points 8
Output Type Sourcing
Rated Voltage 24 VDC
Analog Input N/A
Analog Output N/A
COM Ports RS232, RS485, CAN
Interested in large quantity discount?

Product Information

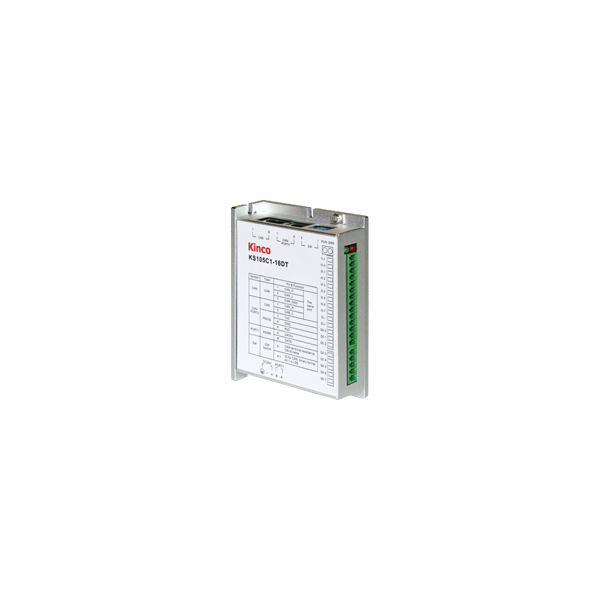

The KNC-PLC-KS105 is a small and thin PLC with high performance. It includes 16 digital I/O, 4 high-speed counters, 4 high-speed pulse outputs, 256 timers, 256 counters, RTC (Real Time Clock), 4 interrupts, one RS485 communication port, one RS232 programming port, optional CANopen port, and is expandable with up to 14 I/O modules. The high-speed counters come in 9 operation modes and support a single-phase or dual-phase frequency up to 200 kHz. In the 9 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit preset value. Three of the four high-speed pulse outputs - channels 0,1, and 2 - can reach a maximum frequency of 200 kHz, while channel 3 can reach a maximum frequency of 10 kHz. All four high-speed output channels support both PTO and PWM. The KNC-PLC-KS105C1-16DT and KNC-PLC-KS105C2-16DT support CANopen protocol. The free KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions. The KNC-PLC-KS105 Series is an ideal hub for data processing with field devices such as temperature modules, servo drives, field busses, and more.

  • Four High-Speed Counters, Max 200 kHz
  • Four High-Speed Outputs, Max 200 kHz
  • 24VDC Power Required
  • 8 Digital Inputs, 8 Digital Outputs
  • 3 year Lithium Battery for Data Retention
  • Multiple Communication Ports
  • 4K Bytes of Programming Instructions
  • 5K Bytes of Data
  • 448 Bytes of EEProm Backup

User Manual (PDF)

Spec Sheet (PDF)

Software Download
