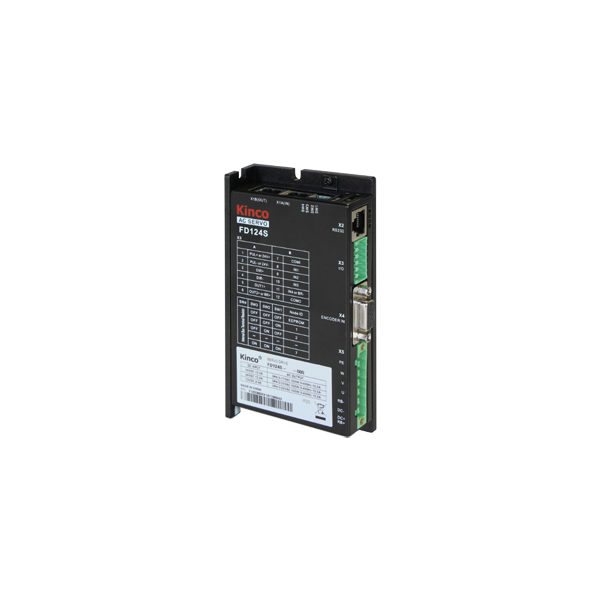

KNC-SRV-FD124S-EB-000
| Rated Power (Watts) | 200-400 |
|---|---|
| Rated Voltage | 24-70 VDC |
| Drive Control Capabilities | Position, Speed, Torque |
| COMM | EtherCAT |
| I/O Signals | 3 Inputs, 1 Output |
Interested in large quantity discount?
Product Information
KNC-SRV-FD124S Servo Drives are a great fit for applications requiring position, speed, and/or torque control methods. Accomodating motors with power ratings ranging from 200-400W, FD124S is designed to switch dynamically among different control methods for more flexible operation. LA/LB models can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. These drives come standard with an RS232 which can be operated using MODBUS Protocol, a RS485 port. The EA/EB models also feature RS232, but EtherCAT replaces MODBUS RTU protocol. All FD124S servo drives operate on 24-70 VDC input, and can be operated using our Free, Easy-to-Use Software. Please consult our Application Engineers for more information.
Note: To communicate to the drives using RS232, the KNC-SRV-RS-232-RJ45 Cable is required.
- 24-70VDC
- Rated Current is 12A (RMS), Peak Current is 36A
- 200-400 Watt Power Range
- Position, Speed, and Torque Control
- RS232 and EtherCAT Port
- Supports Incremental or 16-Bit Absolute Encoders
- Communication Software
- Configure Parameters
- I/O Signal Monitoring
- Speed and Position Curves
- Gain Adjustments
- CE Certified
.png)
.png)
