KNC-SRV-FD412-LA-000

1pc Price:
$255.00
Quantity Discount
  • Buy 10 for $244.99 each and save 4%
  • Buy 25 for $237.87 each and save 7%
  • Buy 50 for $220.87 each and save 13%
  • Buy 100 for $206.99 each and save 19%
Inventory:
5
More Information
Rated Power (Watts) 50-100
Rated Voltage 176-253 VAC
Drive Control Capabilities Position, Speed, Torque
COMM MODBUS through RS485
I/O Signals 7 Inputs, 5 Outputs
Interested in large quantity discount?

Product Information

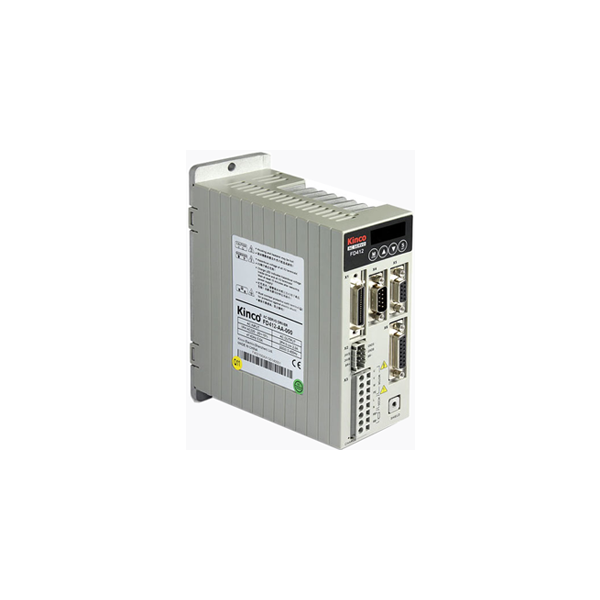

The FD412-LA-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive package is the flexibility of using a single servo drive that can accommodate motors with power ratings ranging from 50-200W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The FD412-LA-000 Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The FD412-LA-000 Servo Drive operates with single-phase 176-253VAC input. These drives come standard with an RS232 and RS485 communication port and can be operated using MOBBUS Protocols or the Free, Easy-to-Use Software. Please consult our Application Engineers for more information.

Note: FD412 Series Servo Drives have been discontinued and are LTSOH (Limited to Stock on Hand). We recommend the FD412S Series as a suitable alternative.

  • 176-253VAC Single-Phase Input
  • 50-200 Watt Power Range
  • Position, Speed, and Torque Control
  • Communication Ports: RS232 and RS485
  • Communication Protocol: MODBUS
  • Requires 2500PPR Encoder Input
  • Comminucation Software
    • Configure Parameters
    • I/O Signal Monitoring
    • Speed and Position Curves
    • Gain Adjustments
  • Programmable Inputs and Outputs
    • 7 Inputs
    • 4 Outputs
  • 2 Analog Inputs
  • CE Certified
