KNC-SRV-FD144S-LB-000

1pc Price:
$382.00
Quantity Discount
  • Buy 10 for $376.30 each and save 1%
  • Buy 25 for $368.38 each and save 4%
  • Buy 50 for $344.79 each and save 10%
  • Buy 100 for $328.86 each and save 14%
Inventory:
4
More Information
Rated Power (Watts) 1200-1500
Rated Voltage 24-70 VDC
Drive Control Capabilities Position, Speed, Torque
COMM MODBUS
I/O Signals 3 Inputs, 1 Output
Continuous Current (RMS) (A) 40
Peak Current (A) 120
Interested in large quantity discount?

Product Information

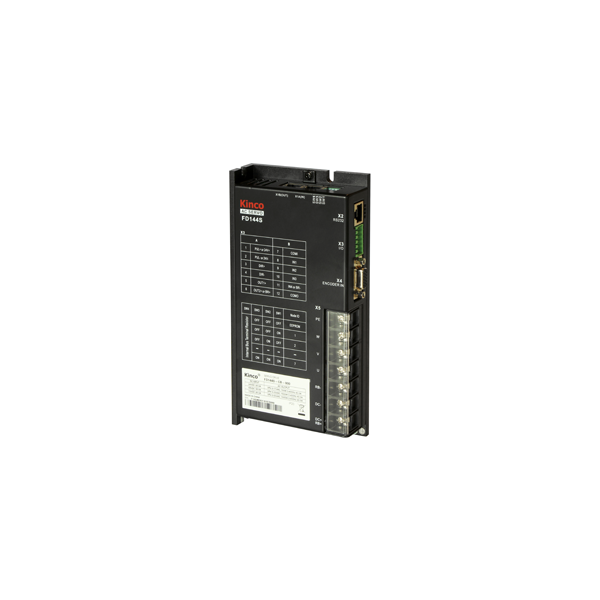

The KNC-SRV-FD144S-LB-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive is the flexibility of using a single Servo Drive that can accommodate motors with a power rating range of 1200-1500W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD144S-LB-000 Servo Drive can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. The KNC-SRV-FD144S-LB-000 Servo Drive operates with 24-70VDC input. These drives come standard with an RS232 which can be operated using MODBUS Protocol, a RS485 port, or can be operated using our Free, Easy-to-Use Software. Please consult our Application Engineers for more information.

Note: To communicate to the drives, the KNC-SRV-RS-232-RJ45 Cable is required.

  • 24-70VDC
  • Rated Current is 30A (RMS), Peak Current is 120A
  • 1200-1500 Watt Rated Power Range
  • Position, Speed, and Torque Control
  • RS232 and RS485 Port
  • MODBUS RTU or Pulse and Direction
  • Supports Incremental or 16-Bit Absolute Encoders
  • Communication Software
    • Configure Parameters
    • I/O Signal Monitoring
    • Speed and Position Curves
    • Gain Adjustments
  • Programmable Inputs and Outputs
    • 3 Inputs
    • 2 Outputs (1 Standard & 1 for Brake)
  • CE Certified
