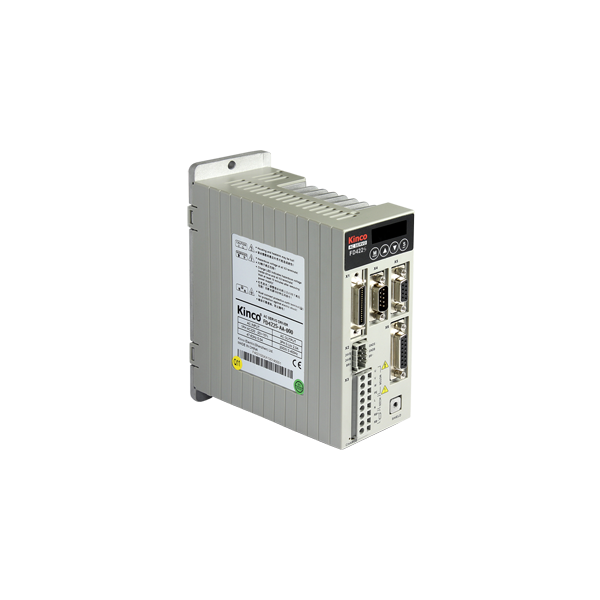

KNC-SRV-FD422S-CA-000

The KNC-SRV-FD422S Series Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The 2S version Servo Driver supports motors with higher resolution encoders: 16-bit multi turn encoder, 17-bit single turn encoder, 20-bit single turn encoder, 17-bit mechanical encoder, and 2500 PPR Encoder. The uniqueness of this Servo Drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 200-750W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD422S Series Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The KNC-SRV-FD422S Series Servo Drive operates with Single Phase 176-253 VAC Input. These drives come standard with an RS232 and RS485 communication port and can be operated using MODBUS Protocols or the free, Easy-to-Use Software. Please consult our Application Engineers for more information.

• 220VAC Single Phase Input
• 200-750 Watt Power Range
• Position, Speed, and Torque Control
• Communication Ports: RS232 and RS485
• Communication Protocol: MODBUS
• Supports Motors with High-Resolution Encoders
• Communication Software
• Configure Parameters
• I/O Signal Monitoring
• Speed and Position Curves
• Gain Adjustments
• Programmable Inputs and Outputs
• 7 Inputs
• 4 Outputs
• 2 Analog Inputs
• CAN BUS Port and CANopen Optional
• CE Certified
