1pc Price:
$296.00
Quantity Discount
  • Buy 10 for $291.37 each and save 2%
  • Buy 25 for $281.08 each and save 5%
  • Buy 50 for $262.99 each and save 11%
  • Buy 100 for $236.28 each and save 20%
Inventory:
7
More Information
Rated Power (Watts) 200-750
Rated Voltage 88-126 VAC
Drive Control Capabilities Position, Speed, Torque
COMM MODBUS through RS485
I/O Signals 7 Inputs, 5 Outputs
Interested in large quantity discount?

Product Information

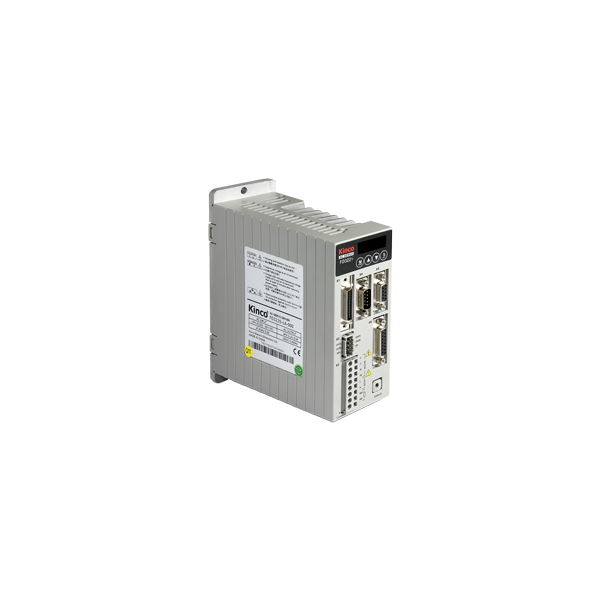

The FD322S-LA-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this Servo Drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 200-750W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The FD322S-LA-000 Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The FD322S-LA-000 Servo Drive operates with single-phase 88-126VAC input. These drives come standard with an RS232 and RS485 communication port and can be operated using MODBUS Protocols or the Free, Easy-to-Use Software. Please consult our Application Engineers for more information.

  • 88-126VAC Single Phase Input
  • 200-750 Watt Power Range
  • Position, Speed, and Torque Control
  • Communication Ports: RS232 and RS485
  • Communication Protocol: MODBUS
  • 2500PPR Incremental Encoder
  • Communication Software
    • Configure Parameters
    • I/O Signal Monitoring
    • Speed and Position Curves
    • Gain Adjustments
  • Programmable Inputs and Outputs
    • 7 Inputs
    • 4 Outputs
  • 2 Analog Inputs
  • CE Certified
