KNC-SRV-FD322S-LA-000

KNC-SRV-FD322S-LA-000

KNC-SRV-FD432S-LA-000

KNC-SRV-FD432S-LA-000

KNC-SRV-FD432S-CA-000

Unit Price:
$582.00
Quantity Discount
  • Buy 10 for $544.59 each and save 6%
  • Buy 25 for $514.84 each and save 12%
  • Buy 50 for $473.97 each and save 19%
  • Buy 100 for $423.11 each and save 27%
  • Buy 250 for $408.52 each and save 30%
  • Buy 500 for $373.91 each and save 36%
  • Buy 1000 for $361.84 each and save 38%
  • Buy 2500 for $350.54 each and save 40%
Inventory:
0
Out of Stock
More Information
Rated Power (Watts) 1000-2000
Rated Voltage 176-253 VAC
Drive Control Capabilities Position, Speed, Torque
COMM CANopen + RS232
I/O Signals 7 Inputs, 4 Outputs
Interested in large quantity discount?

Product Information

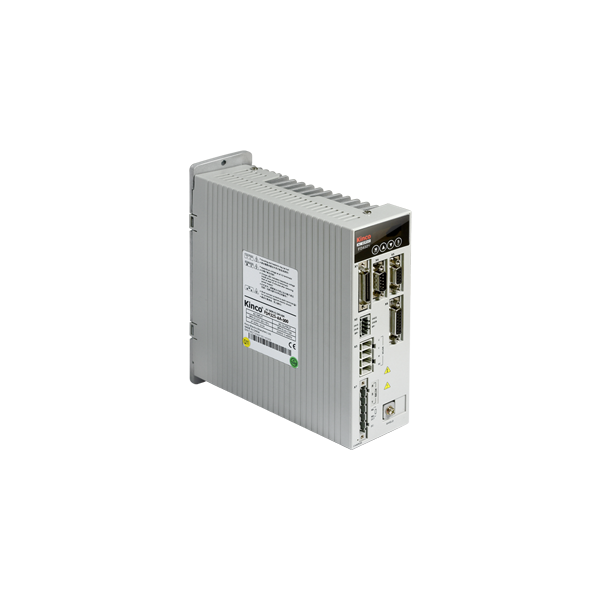

The KNC-SRV-FD432S Series Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The 2S version Servo Driver supports motors with higher resolution encoders: 16-bit multi turn encoder, 17-bit single turn encoder, 20-bit single turn encoder, 17-bit mechanical encoder, and 2500 PPR Encoder. The uniqueness of this Servo Drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 1000-2000W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD432S Series Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The KNC-SRV-FD432S Series Servo Drive operates with Single Phase or Three-Phase 176-253 VAC Input. These drives come standard with an RS232 and CAN communication ports and can be operated using the CANopen Protocol or the free, Easy-to-Use Software. Please consult our Application Engineers for more information.

  • 220VAC Single-Phase or Three-Phase Input
  • 1000-2000 Watt Power Range
  • Position, Speed, and Torque Control
  • Communication Ports: CAN and RS232
  • Communication Protocol: CANOpen
  • Supports Motors with High-Resolution Encoders
  • Communication Software
    • Configure Parameters
    • I/O Signal Monitoring
    • Speed and Position Curves
    • Gain Adjustments
  • Programmable Inputs and Outputs
    • 7 Inputs
    • 4 Outputs
  • 2 Analog Inputs
  • CE Certified

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)

Software Download

Getting Started
