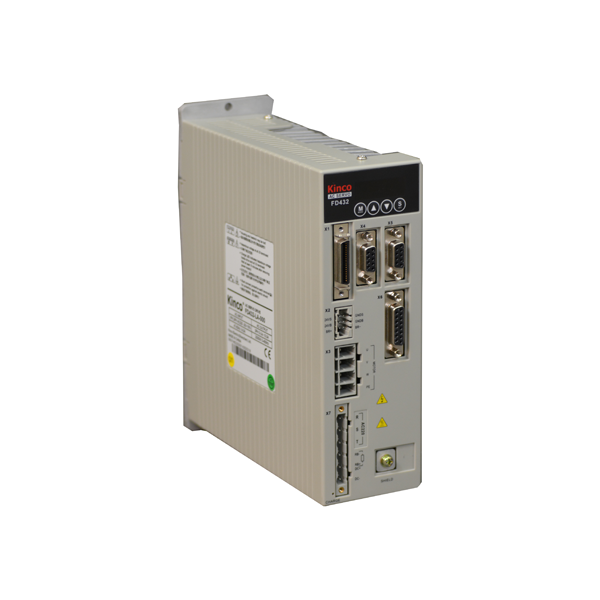

KNC-SRV-FD432-AA-000

The KNC-SRV-FD432 Series Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive package is the flexibility of using a single servo drive that can accommodate motors with power ratings ranging from 1000-1260W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD432 Series Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The KNC-SRV-FD432 Series Servo Drive operates with single-phase or three-phase 176-253VAC input. These drives come standard with an RS232 and RS485 communication port and can be operated using MOBBUS Protocols or the Free, Easy-to-Use Software. Please consult our Application Engineers for more information.

Note: KNC-SRV-FD432 Series Servo Drives have been discontinued and are LTSOH (Limited to Stock on Hand). We recommend the FD432S Series as a suitable alternative.

• 176-253VAC Single or Three-Phase Input
• 1000-1260 Watt Power Range
• Position, Speed, and Torque Control
• Communication Ports: RS232 and RS485
• Communication Protocol: MODBUS
• Requires 2500PPR Encoder Input
• Comminucation Software
• Configure Parameters
• I/O Signal Monitoring
• Speed and Position Curves
• Gain Adjustments
• Programmable Inputs and Outputs
• 7 Inputs
• 4 Outputs
• 2 Analog Inputs
• CE Certified
