KNC-SRV-SMC80S-0075-30MAK-3DSU

1pc Price:
$244.00
Quantity Discount
  • Buy 10 for $233.53 each and save 4%
  • Buy 25 for $231.05 each and save 5%
  • Buy 50 for $189.93 each and save 22%
  • Buy 100 for $187.25 each and save 23%
Inventory:
6
More Information
Rated Torque (oz-in) 338
Rated Power (Watts) 750
Rated Speed (RPM) 3000
Max Speed (rpm) 3690
Rated Current (Arms) 19
Voltage 24-70 VDC
Brake No
Inertia (oz-in-sec2) 0.01539
Torque Constant KT (oz-in/A) 18.7
Resistance (ohms) 0.11
Inductance (mH) 0.4
Length (mm) 128.5
Weight (lbs) 6.17
Interested in large quantity discount?

Product Information

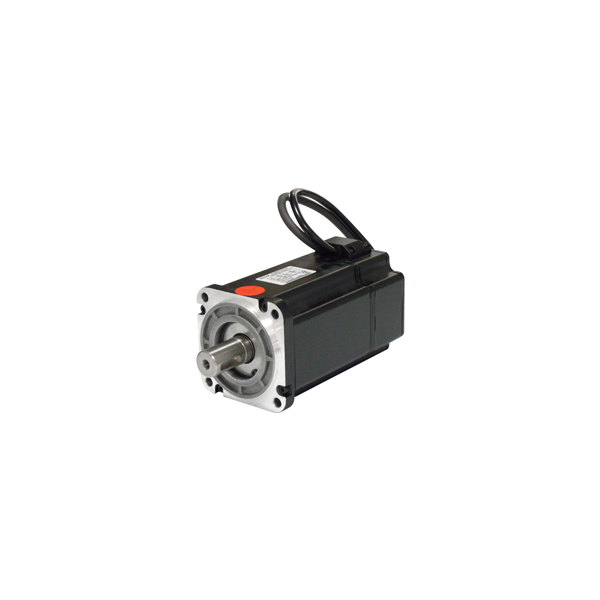

Our KNC-SRV-SMC80S-0075-30MAK-3DSU Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in an 80mm square flange size and are equipped with a 16-bit Single-Turn Magnetic Encoder for better cushioning ability and a higher cost-performance ratio. KNC-SRV-SMC80S-0075-30MAK-3DSU motors are rated for Class F insulation, the highest insulation class available. They operate quietly with high reliability and stability in high-temperature environments. These Servo Motors boast peak torque values up to 1,014 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and has a rated torque of 338 oz-in.

  • 24-70VDC Servo Motor
  • 750W Power Rating
  • Rated Torque of 338 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 3690 RPM
  • Magnetic Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified

User Manual (PDF)

Spec Sheet (PDF)

.STEP File (.zip File)
