KNC-SRV-SMH110D-0105-20AAK-4LKC
| Rated Torque (oz-in) | 708 |
|---|---|
| Rated Power (Watts) | 1050 |
| Rated Speed (RPM) | 2000 |
| Max Speed (rpm) | 2850 |
| Rated Current (Arms) | 5.9 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.1019 |
| Torque Constant KT (oz-in/A) | 128 |
| Resistance (ohms) | 1 |
| Inductance (mH) | 7.8 |
| Length (mm) | 185 |
| Weight (lbs) | 15.87 |
Interested in large quantity discount?
Product Information

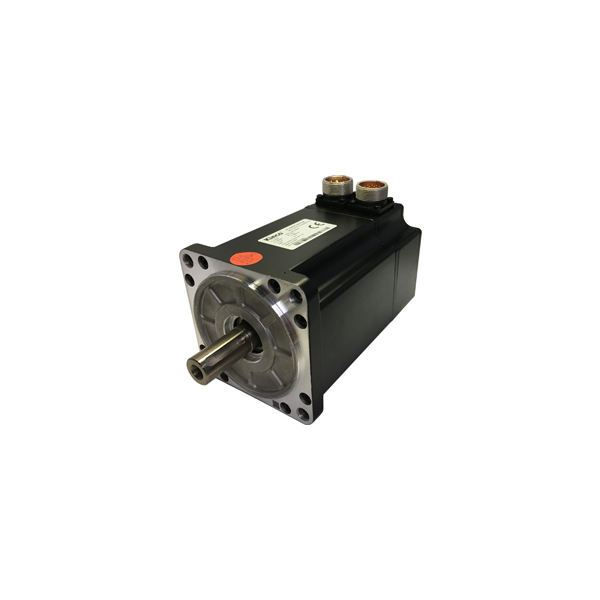

The KNC-SRV-SMH110D-0105-20AAK-4LKC Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 110mm frame size motors boast peak torque values up to 708 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a 2,500 PPR Incremental Encoder for motor feedback.
- 220VAC Servo Motor
- 1050W Power Rating
- Rated Torque of 708 oz-in
- Maximum Speed 2850 RPM
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
