KNC-SRV-SMH80S-0100-30ABK-3LKH
| Rated Torque (oz-in) | 450 |
|---|---|
| Rated Power (Watts) | 1000 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 5500 |
| Rated Current (Arms) | 6.3 |
| Voltage | 220 VAC |
| Brake | Yes |
| Inertia (oz-in-sec2) | 0.0269 |
| Torque Constant KT (oz-in/A) | 79 |
| Resistance (ohms) | 0.86 |
| Inductance (mH) | 4.5 |
| Length (mm) | 217 |
| Weight (lbs) | 10.14 |
Interested in large quantity discount?
Product Information

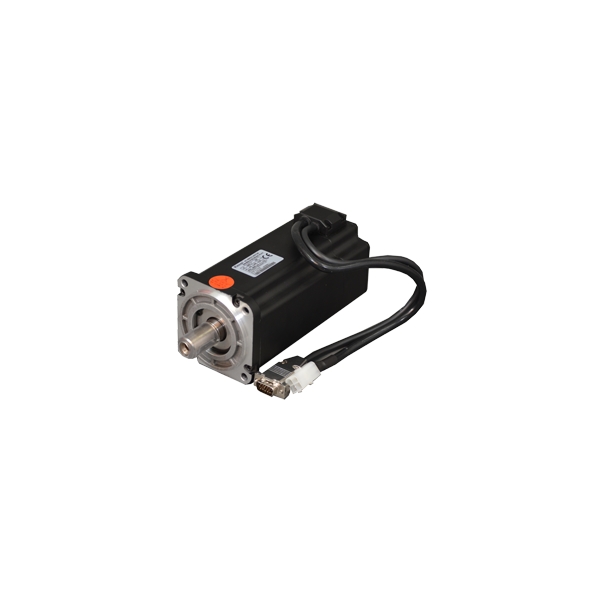

The KNC-SRV-SMH80S-0100-30ABK-3LKH Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 80mm flange size motors boast peak torque values up to 1,350 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake, as well as a 2,500 PPR Incremental Encoder for motor feedback.
- 220VAC Servo Motor with Brake
- 1000W Power Rating
- Rated Torque of 450 oz-in
- Maximum Speed 5500 RPM
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
