KNC-SRV-SMH110D-0125-30AAK-4LKC

KNC-SRV-SMH110D-0125-30AAK-4LKC

KNC-SRV-SMC130D-0120-30AAK-4DKR

KNC-SRV-SMC130D-0120-30AAK-4DKR

KNC-SRV-SMH110D-0125-30ABK-4LKC

1pc Price:
$753.00
Quantity Discount
  • Buy 10 for $738.56 each and save 2%
  • Buy 25 for $636.03 each and save 16%
  • Buy 50 for $599.47 each and save 20%
  • Buy 100 for $561.87 each and save 25%
Inventory:
More Information
Rated Torque (oz-in) 566
Rated Power (Watts) 1250
Rated Speed (RPM) 3000
Max Speed (rpm) 5800
Rated Current (Arms) 6.5
Voltage 220 VAC
Brake Yes
Inertia (oz-in-sec2) 0.08213
Torque Constant KT (oz-in/A) 105
Resistance (ohms) 0.8
Inductance (mH) 6.4
Length (mm) 228
Weight (lbs) 18.08
Interested in large quantity discount?

Product Information

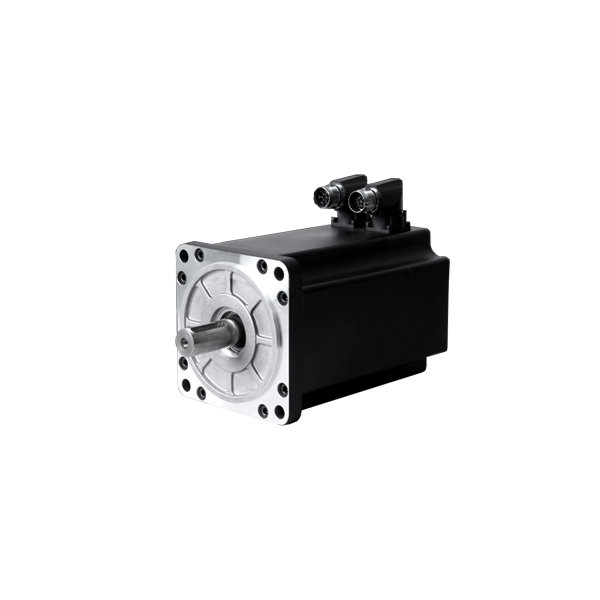

The KNC-SRV-SMH110D-0125-30ABK-4LKC Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 110mm square flange size motors boast peak torque values up to 1,700 oz-i, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake, as well as a 2,500 PPR Incremental Encoder for better cushioning ability and a higher cost-performance ratio.

  • 220VAC Servo Motor
  • 1250W Power Rating
  • Rated Torque of 566 oz-in
  • Maximum Speed 5800 RPM
  • 2500PPR Incremental Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified
